ACA28

Toyota RAV4-VANGUARD · 2003 · 4,219 parts · 183 categories
ACA28 ×

← Back to categories

4,219 items

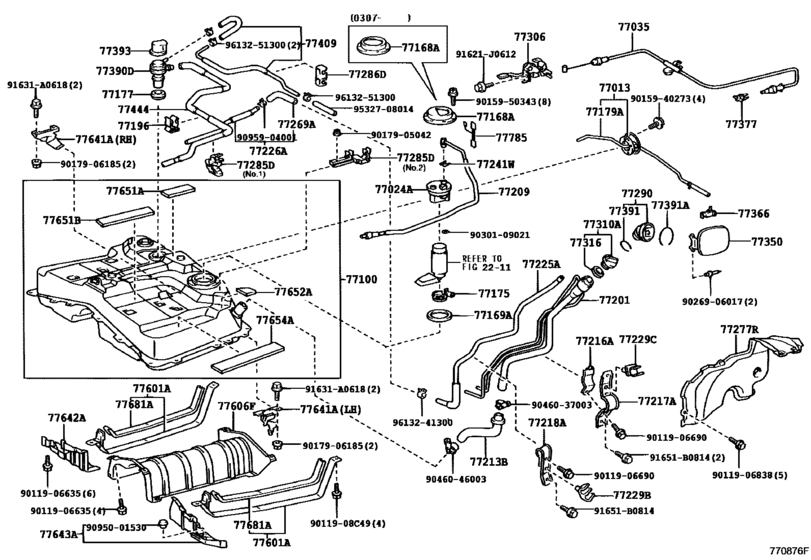

Fuel Tank & Tube ([08.2000 - ] FUEL TANK (0008- )) 78
#OEMPart name
77013 77013-42010 Tube Sub-Assy, Fuel Tank Breather, No.2
77024 77024-42010 Plate Sub-Assy, Fuel Suction
77035 77035-42100 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-42130 Tank Assy, Fuel
77168 77168-52010 Plate, Fuel Tank Vent Tube Set
77169 77169-33020 Gasket, Fuel Pump Bracket
77175 77175-52020 Support, Fuel Suction, No.2
77177 77177-33010 Gasket, Check Valve
77179 77179-20040 Gasket, Fuel Tank Breather Tube
77196 77196-24010 Clamp, Evaporation Vent Tube, No.1
77201 77201-42130 Pipe Sub-Assy, Fuel Tank Inlet
77201 77210-42051 Pipe Sub-Assy, Fuel Tank Inlet
77209 77209-42110 Connector Sub-Assy, Fuel Tube
77213 77213-42070 Hose, Fuel Tank To Filler Pipe
77216 77216-42020 Support, Fuel Tank Filler Pipe, No.1
77217 77217-42010 Support, Fuel Tank Filler Pipe, No.2
77218 77218-42010 Support, Fuel Tank Filler Pipe, No.3
77225 77225-42010 Tube, Fuel Tank Breather, No.5
77226 77226-42010 Tube, Fuel Tank Breather, No.6
77229 77229-42030 Tube, Fuel Tank Evaporation Vent, No.3
77229 77229-42020 Clamp, Breather Tube
77241 77241-32060 Clip, Tube Joint
77269 77269-42020 Hose, Fuel Tank Breather
77277 77277-42040 Protector, Fuel Tank Filler Pipe
77285 77285-42040 Clamp, Fuel Tube, No.1
77285 77285-42060 Clamp, Fuel Tube, No.1
77286 77286-42030 Clamp, Fuel Tube, No.2
77290 77291-42020 Shield Assy, Fuel Tank Filler Pipe
77306 77306-32020 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-53010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-42060 Lid Assy, Fuel Filler Opening
77366 77360-30070 Spring, Fuel Filler Opening Lid Hinge
77366 77360-0R010 Spring Assy, Charging Port Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77390 77390-20070 Valve Assy, Fuel Tank Over Fill Check
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-20030 Ring, Fuel Inlet Box
77393 77393-42010 Protector, Check Valve
77409 77409-42010 Hose Sub-Assy, Fuel, No.3
77444 77404-42011 Hose, Fuel Tank Vent
77601 77601-42050 Band Sub-Assy, Fuel Tank, No.1
77606 77606-42020 Case Sub-Assy, Fuel Tank Cover Vent
77641 77641-42020 Protector, Fuel Tank, No.1
77641 77641-42030 Protector, Fuel Tank, No.1
77642 77642-42030 Protector, Fuel Tank, No.2
77643 77643-42030 Protector, Fuel Tank, No.3
77651 77653-26040 Cushion, Fuel Tank, No.1
77651 77651-35060 Cushion, Fuel Tank
77652 77652-12100 Cushion, Fuel Tank, No.1
77654 77654-42010 Cushion, Fuel Tank, No.4
77654 77654-60030 Cushion, Fuel Tank, No.4
77681 77682-16010 Seat, Fuel Tank Band, Rh
77785 77785-32010 Harness, Fuel Pump
91621 91621-J0612 BOLT W-WASHER
91631 91631-A0618 New Genuine Part
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011908 90119-08C49 New Genuine Part
9011906635 90119-06635 New Genuine Part
9011906690 90119-06690 BOLT, W/WASHER
9011906690 90119-06375 Bolt (For Transmission Housing & Case Setting)
9011906838 90119-06838 New Genuine Part
9011906838 90119-06660 BOLT
9015940273 90159-40273 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9017905042 90179-05042 NUT
9017906185 90179-06185 CLIP BUMPER
9026906017 90269-06017 RIVET
9030109021 90301-09021 GASKET
9046037003 90460-37003 Clamp, Fuel Hose
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9095001530 90950-01530 New Genuine Part
9095904001 90959-04001 Clip, Fuel Hose
9532708014 95327-08014 New Genuine Part
9613241300 96132-41300 Clip, No.4(For Idle-Up Hose)
9613241300 96132-51300 Clip(For Ventilation Hose No.2)
