| 04493-28150 |
Cylinder Kit, Brake Master |

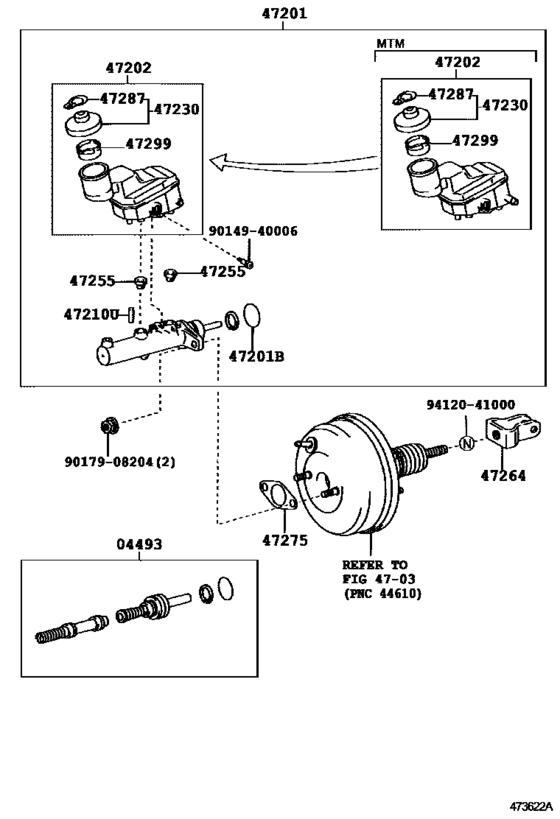

Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 04493-28160 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47201-42241 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47201-42260 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47201-42270 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47220-42080 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47220-42090 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47255-16010 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47264-42010 |
Clevis, Master Cylinder Push Rod |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47275-12020 |
Gasket, Brake Master Cylinder |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47287-20010 |
Label, Brake Fluid Information |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 47299-25010 |
Strainer, Master Cylinder Reservoir |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 90029-14204 |
Pin, Straight(For Brake Master Cylinder) |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 90029-20059 |
Ring, O(For Brake Master Cylinder) |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 90080-18070 |
NUT, WWASHER |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 90149-40006 |
Bolt |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 90170-A0002 |
Nut |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
| 94120-41000 |
Nut(For Clutch Pedal Stopper) |
Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )) |
