Search › Model › ACA22

ACA22

Toyota RAV4-VANGUARD · 2003 · 3,859 parts · 197 categories

3,859 items

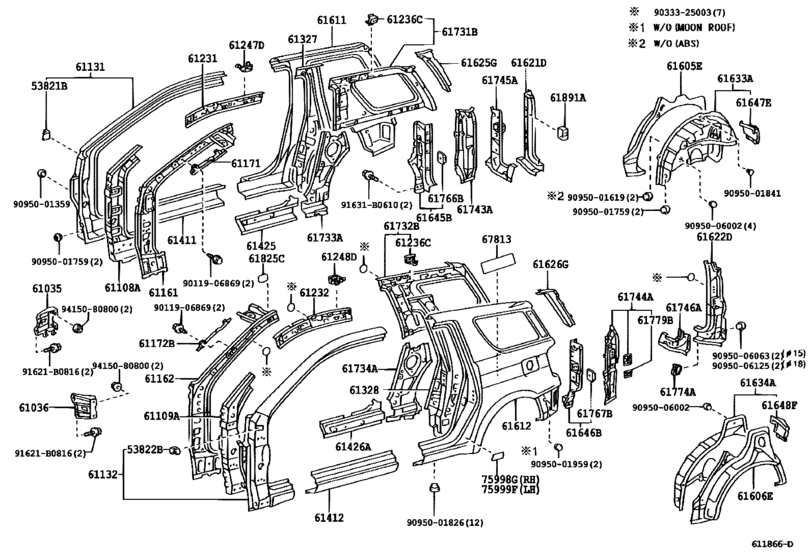

Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25) 66

#	OEM	Part name
53821	53821-16010	Bracket, Front Fender, Rear Rh
61035	61165-42020	Bracket Sub-Assy, Instrument Panel To Cowl Side, Rh
61036	61166-42020	Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh
61108	61108-42050	Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61109	61109-42050	Reinforce Sub-Assy, Front Body Pillar, Lower Lh
61131	61110-42110	Pillar, Front Body, Upper Outer Rh
61132	61120-42110	Pillar, Front Body, Upper Outer Lh
61161	61023-42100	Pillar, Front Body, Upper Inner Rh
61162	61024-42100	Pillar, Front Body, Upper Inner Lh
61171	61171-42010	Retainer, Front Pillar, Lower Inner Rh
61172	61172-42010	Retainer, Front Pillar, Lower Inner Lh
61231	61231-42110	Rail, Roof Side, Inner Rh
61232	61232-42110	Rail, Roof Side, Inner Lh
61236	61235-42010	Bracket, Assist Grip
61247	61247-42030	Bracket, Assist Grip, Rh
61327	61303-42904	Reinforcement, Center Body Pillar, Outer Rh
61328	61304-42904	Reinforcement, Center Body Pillar, Outer Lh
61411	61411-42100	Panel, Rocker, Outer Rh
61412	61412-42090	Panel, Rocker, Outer Lh
61425	61425-42050	Reinforcement, Rocker Panel, No.4 Rh
61426	61426-42060	Reinforcement, Rocker Panel, No.4 Lh
61605	61605-42080	Panel, Quarter, Rh
61606	61606-42090	Panel, Quarter, Lh
61611	61611-42140	Panel, Quarter, Rh
61611	61611-42180	Panel, Quarter, Rh
61612	61620-42160	Panel, Quarter, Lh
61612	61620-42210	Panel, Quarter, Lh
61621	61621-42030	Trough, Back Door Opening, Rh
61622	61622-42030	Trough, Back Door Opening, Lh
61625	61625-42030	Extension, Quarter Panel, Rear Rh
61626	61626-42030	Extension, Quarter Panel, Rear Lh
61633	61607-42050	Panel, Quarter Wheel House, Inner Rh
61634	61608-42060	Panel, Quarter Wheel House, Inner Lh
61645	61645-42901	Gusset, Quarter Wheel House, Rear Rh
61646	61646-42901	Gusset, Quarter Wheel House, Rear Lh
61647	61647-42020	Reinforcement, Quarter Panel, Lower Rh
61648	61648-42020	Reinforcement, Quarter Panel, Lower Lh
61731	61731-42903	Panel, Roof Side, Inner Rh
61732	61732-42903	Panel, Roof Side, Inner Lh
61733	61733-42900	Panel, Roof Side, Inner Front Rh
61734	61734-42900	Panel, Roof Side, Inner Front Lh
61743	61743-42030	Reinforcement, Back Door Opening Side, Rh
61744	61744-42901	Reinforcement, Back Door Opening Side, Lh
61745	61745-42010	Reinforcement, Back Door Opening, Lower Rh
61746	61746-42010	Reinforcement, Back Door Opening, Lower Lh
61766	61766-42010	Reinforcement, Belt Anchor To Roof Side, Inner Rh
61774	61774-42010	Patch, Back Door Opening, Lower Lh
61779	61779-42010	Plate, Back Door Opening, Lower Lh
61825	61825-42010	Pad, Noise Shutter, No.2
61825	61824-12120	Pad, Noise Shutter, No.2
61891	61891-42010	Retainer, Back Door Upper Hinge, Rh
67813	67812-42010	Pad, Quarter Panel Silencer
91621	91621-B0816	BOLT WWASHER
91631	91631-B0610	BOLTWWASHER
9011906869	90119-06869	Bolt, W/washer
9033325003	90333-25003	Plug, Hole(For Hood)
9095001359	90950-01359	New Genuine Part
9095001619	90950-01619	New Genuine Part
9095001759	90950-01759	PLUG
9095001826	90950-01826	Plug, Hole(For Floor Panel)
9095001841	90950-01841	Direct
9095001959	90950-01959	Cover, Console Box Hole
9095006002	90950-06002	Cover, Front Floor Hole
9095006063	90950-06063	Protector, Rear Body, No.1
9095006125	90950-06125	TAPE SEAL
9415080800	94150-80800	NUT, FLANGE

OEM	Part name	Category
53821-16010	Bracket, Front Fender, Rear Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61023-42100	Pillar, Front Body, Upper Inner Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61024-42100	Pillar, Front Body, Upper Inner Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61108-42050	Reinforce Sub-Assy, Front Body Pillar, Lower Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61109-42050	Reinforce Sub-Assy, Front Body Pillar, Lower Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61110-42110	Pillar, Front Body, Upper Outer Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61120-42110	Pillar, Front Body, Upper Outer Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61165-42020	Bracket Sub-Assy, Instrument Panel To Cowl Side, Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61166-42020	Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61171-42010	Retainer, Front Pillar, Lower Inner Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61172-42010	Retainer, Front Pillar, Lower Inner Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61231-42110	Rail, Roof Side, Inner Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61232-42110	Rail, Roof Side, Inner Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61235-42010	Bracket, Assist Grip	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61247-42030	Bracket, Assist Grip, Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61303-42904	Reinforcement, Center Body Pillar, Outer Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61304-42904	Reinforcement, Center Body Pillar, Outer Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61411-42100	Panel, Rocker, Outer Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61412-42090	Panel, Rocker, Outer Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61425-42050	Reinforcement, Rocker Panel, No.4 Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61426-42060	Reinforcement, Rocker Panel, No.4 Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61605-42080	Panel, Quarter, Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61606-42090	Panel, Quarter, Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61607-42050	Panel, Quarter Wheel House, Inner Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61608-42060	Panel, Quarter Wheel House, Inner Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61611-42140	Panel, Quarter, Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61611-42180	Panel, Quarter, Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61620-42160	Panel, Quarter, Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61620-42210	Panel, Quarter, Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61621-42030	Trough, Back Door Opening, Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61622-42030	Trough, Back Door Opening, Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61625-42030	Extension, Quarter Panel, Rear Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61626-42030	Extension, Quarter Panel, Rear Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61645-42901	Gusset, Quarter Wheel House, Rear Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61646-42901	Gusset, Quarter Wheel House, Rear Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61647-42020	Reinforcement, Quarter Panel, Lower Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61648-42020	Reinforcement, Quarter Panel, Lower Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61731-42903	Panel, Roof Side, Inner Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61732-42903	Panel, Roof Side, Inner Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61733-42900	Panel, Roof Side, Inner Front Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61734-42900	Panel, Roof Side, Inner Front Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61743-42030	Reinforcement, Back Door Opening Side, Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61744-42901	Reinforcement, Back Door Opening Side, Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61745-42010	Reinforcement, Back Door Opening, Lower Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61746-42010	Reinforcement, Back Door Opening, Lower Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61766-42010	Reinforcement, Belt Anchor To Roof Side, Inner Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61774-42010	Patch, Back Door Opening, Lower Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61779-42010	Plate, Back Door Opening, Lower Lh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61824-12120	Pad, Noise Shutter, No.2	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61825-42010	Pad, Noise Shutter, No.2	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
61891-42010	Retainer, Back Door Upper Hinge, Rh	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
67812-42010	Pad, Quarter Panel Silencer	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90119-06869	Bolt, W/washer	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90333-25003	Plug, Hole(For Hood)	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90950-01359	New Genuine Part	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90950-01619	New Genuine Part	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90950-01759	PLUG	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90950-01826	Plug, Hole(For Floor Panel)	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90950-01841	Direct	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90950-01959	Cover, Console Box Hole	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90950-06002	Cover, Front Floor Hole	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90950-06063	Protector, Rear Body, No.1	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
90950-06125	TAPE SEAL	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
91621-B0816	BOLT WWASHER	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
91631-B0610	BOLTWWASHER	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
94150-80800	NUT, FLANGE	Side Member ([07.2003 - ] 3 DOOR (0307- )ACA20,22,CLA20,ZCA25)
