AA63

Toyota CARINA · 1983 · 4,926 parts · 183 categories
AA63 ×

← Back to categories

4,926 items

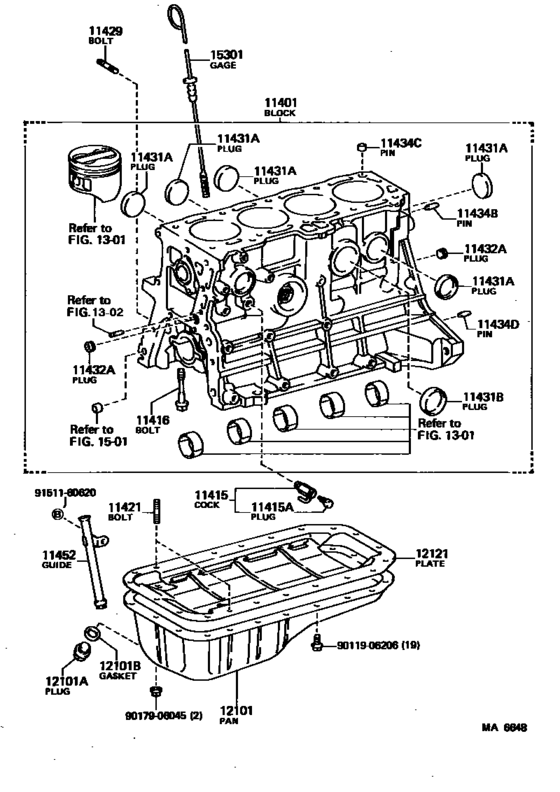

Cylinder Block ([05.1983 - 07.1985] (8305-8507)4AGEU) 34
#OEMPart name
11401 11401-19215 Block Sub-Assy, Cylinder
11401 11401-19216 Block Sub-Assy, Cylinder
11415 90910-09079 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 90910-09088 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 90109-10023 Plug, Water Drain Cock(For Cylinder Block)
11415 90910-09087 Plug, Water Drain Cock(For Cylinder Block)
11416 90105-10007 Bolt(For Crankshaft Bearing Cap Set)
11421 90116-06022 Bolt, Stud(For Valve Push Rod Cover)
11421 90116-06049 Bolt, Stud(For Oil Pan)
11429 90116-08170 Bolt, Stud(For Alternator Bracket)
11431 96411-43500 Plug, Tight, No.1
11431 96411-44000 Plug, Tight, No.1
11432 90344-53008 Plug, W/head Taper Screw, No.2
11434 90250-10113 Pin, Straight(For Timing Gear Cover Set)
11434 90253-13017 Pin, Ring W/head
11434 90250-06003 Pin, Straight
11452 11452-15010 Guide, Oil Level Gage
12101 12101-15040 Pan Sub-Assy, Oil
12101 90430-12028 Gasket (For Drain Plug)
12101 12101-15090 Pan Sub-Assy, Oil
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90341-18089 Plug(For Oil Pan Drain)
12101 90033-41020 Plug(For Oil Pan Drain)
12101 90430-12011 Gasket(For Oil Pan Drain Plug)
12101 90430-18244 Gasket(For Oil Pan Drain Plug)
12101 90430-18023 Gasket(For Oil Pan)
12121 12122-16010 Plate, Oil Pan Baffle, No.1
12121 12122-16011 Plate, Oil Pan Baffle, No.1
15301 15301-16010 Gage Sub-Assy, Oil Level
9011906206 90119-06206 New Genuine Part
9017906045 90179-06045 New Genuine Part
9151160620 91511-60620 Bolt(For Clutch Release Bearing Hub Retainer)
9151160620 91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer)
