Search › Model › AA44S

AA44S

Suzuki CULTUS · 1988 · 2,381 parts · 111 categories

2,381 items

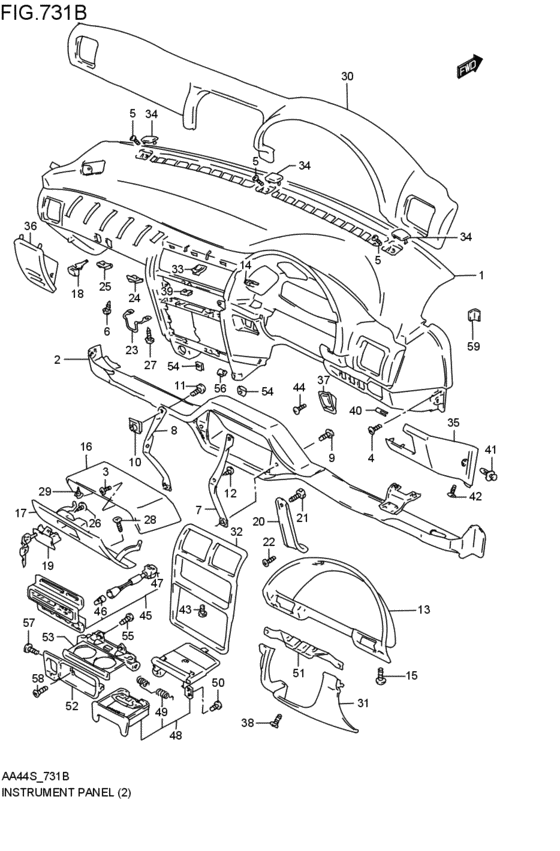

installment panel (T4,T5,T6; 1991-06-01~1999-07-01) 64

#	OEM	Part name
1	73111-60E00-5ES	パネル,インストゥルメントメイン(ブラック)
2	73210-60E01-000	MEMBER,I/P
3	73415-60E00-000	SCREW,GLOVE BOX
4	01580-06163-000	Bolt - Bolt, rear
4	01580-0616A-000	Bolt
6	02142-05123-000	Screw 5x12
6	02142-0512A-000	SCREW - Screw, lower
7	73225-60E10-000	BRACE,I/P DRIVER SIDE
8	73226-60E20-000	BRACE,I/P ASST SIDE
9	09136-05032-000	SCREW(5X16)
10	09148-05039-000	NUT
12	03541-05163-000	Screw
12	03541-0516A-000	SCREW
13	73311-60E00-0CA	PANEL,I/P CLUSTER
14	09148-05020-000	NUT
15	03142-05163-000	Screw
15	03141-0516A-000	SCREW
16	73411-60E00-000	PANEL,GLOVE BOX UPPER
17	73420-60E00-5ES	DOOR,GLOVE BOX
18	73461-77E00-000	CUSHION,GLV BOX LID - Cushion, glove box lid side
19	73400-60830-5ES	LOCK SET,GLOVE BOX DR
20	73228-60E00-000	SUPPORTER,I/P MBR,R
21	73229-60E00-000	Bolt
22	02142-06203-000	Screw
22	02142-0620A-000	SCREW
23	73451-60E00-000	STRIKER,GLOVE BOX DOOR
24	09148-05017-000	NUT - Ecrou
26	03221-04123-000	スクリュ
26	03221-0412A-000	SCREW
27	03142-05123-000	Screw - Screw, belt cooling duct
27	03141-0512A-000	SCREW - Screw, belt cooling duct
28	03541-04163-000	Screw
28	03541-0416A-000	SCREW - Screw, trunk box lamp
30	73510-60E01-5ES	PAD,INSTRUMENT PANEL
31	73811-60E00-5ES	COVER,STRG COLUMN HOLE
32	73821-60E00-5PK	GARNISH,I/P CTR
33	73822-60E00-000	CLIP
34	73831-60E00-5ES	COVER,INSTPNL MAIN
35	73841-60E01-5ES	GARNISH,SPEAKER HOLE,R
36	73842-60E01-5ES	GARNISH,SPEAKER HOLE,L
37	82150-60E00-5ES	LEVER,HOOD LATCH RLSE
37	82150-60E00-5PK	LEVER,HOOD LATCH RLSE
38	09139-05048-000	SCREW(5X14)
39	09148-04034-000	NUT
39	09148-04015-000	NUT
41	09409-07308-5PK	CLIP(BLACK)
42	03141-04123-000	Screw
42	03142-0412B-000	SCREW
43	03112-04123-000	Screw
43	03111-0412A-000	SCREW
45	74450-60E01-5PK	PANEL,HEATER CONTROL
46	73856-60E00-000	バルブ,ヒータコントロールパネル
46	73856-60E01-000	BULB,HTR CONTROL PANEL
47	74456-60E00-000	HARNESS,WIRING
48	89810-60E00-5PK	アッシュトレー,フロント(ブラック)
48	89810-50G10-5PK	ASHTRAY,FR
49	89813-60E00-000	SPRING,PROTECTOR
50	03111-04103-000	スクリュ
50	03111-0410A-000	SCREW
51	73315-60E11-000	REINFORCEMENT,INSTR CLST LWR
52	73823-60E00-5PK	GARNISH,I/P CTR LWR
53	73850-60E00-5PK	HOLDER,CUP
54	09148-05038-000	NUT - Nut, inner
59	73121-60E00-000	FELT,I/P SIDE

OEM	Part name	Category
01580-06163-000	Bolt - Bolt, rear	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
01580-0616A-000	Bolt	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
02142-05123-000	Screw 5x12	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
02142-0512A-000	SCREW - Screw, lower	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
02142-06203-000	Screw	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
02142-0620A-000	SCREW	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03111-04103-000	スクリュ	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03111-0410A-000	SCREW	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03111-0412A-000	SCREW	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03112-04123-000	Screw	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03141-04123-000	Screw	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03141-0512A-000	SCREW - Screw, belt cooling duct	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03141-0516A-000	SCREW	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03142-0412B-000	SCREW	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03142-05123-000	Screw - Screw, belt cooling duct	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03142-05163-000	Screw	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03221-04123-000	スクリュ	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03221-0412A-000	SCREW	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03541-04163-000	Screw	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03541-0416A-000	SCREW - Screw, trunk box lamp	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03541-05163-000	Screw	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
03541-0516A-000	SCREW	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
09136-05032-000	SCREW(5X16)	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
09139-05048-000	SCREW(5X14)	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
09148-04015-000	NUT	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
09148-04034-000	NUT	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
09148-05017-000	NUT - Ecrou	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
09148-05020-000	NUT	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
09148-05038-000	NUT - Nut, inner	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
09148-05039-000	NUT	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
09409-07308-5PK	CLIP(BLACK)	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73111-60E00-5ES	パネル,インストゥルメントメイン(ブラック)	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73121-60E00-000	FELT,I/P SIDE	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73210-60E01-000	MEMBER,I/P	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73225-60E10-000	BRACE,I/P DRIVER SIDE	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73226-60E20-000	BRACE,I/P ASST SIDE	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73228-60E00-000	SUPPORTER,I/P MBR,R	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73229-60E00-000	Bolt	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73311-60E00-0CA	PANEL,I/P CLUSTER	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73315-60E11-000	REINFORCEMENT,INSTR CLST LWR	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73400-60830-5ES	LOCK SET,GLOVE BOX DR	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73411-60E00-000	PANEL,GLOVE BOX UPPER	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73415-60E00-000	SCREW,GLOVE BOX	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73420-60E00-5ES	DOOR,GLOVE BOX	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73451-60E00-000	STRIKER,GLOVE BOX DOOR	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73461-77E00-000	CUSHION,GLV BOX LID - Cushion, glove box lid side	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73510-60E01-5ES	PAD,INSTRUMENT PANEL	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73811-60E00-5ES	COVER,STRG COLUMN HOLE	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73821-60E00-5PK	GARNISH,I/P CTR	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73822-60E00-000	CLIP	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73823-60E00-5PK	GARNISH,I/P CTR LWR	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73831-60E00-5ES	COVER,INSTPNL MAIN	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73841-60E01-5ES	GARNISH,SPEAKER HOLE,R	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73842-60E01-5ES	GARNISH,SPEAKER HOLE,L	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73850-60E00-5PK	HOLDER,CUP	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73856-60E00-000	バルブ,ヒータコントロールパネル	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
73856-60E01-000	BULB,HTR CONTROL PANEL	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
74450-60E01-5PK	PANEL,HEATER CONTROL	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
74456-60E00-000	HARNESS,WIRING	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
82150-60E00-5ES	LEVER,HOOD LATCH RLSE	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
82150-60E00-5PK	LEVER,HOOD LATCH RLSE	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
89810-50G10-5PK	ASHTRAY,FR	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
89810-60E00-5PK	アッシュトレー,フロント(ブラック)	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
89813-60E00-000	SPRING,PROTECTOR	installment panel (T4,T5,T6; 1991-06-01~1999-07-01)
