AA44S

Suzuki CULTUS · 1988 · 2,381 parts · 111 categories

2,381 items

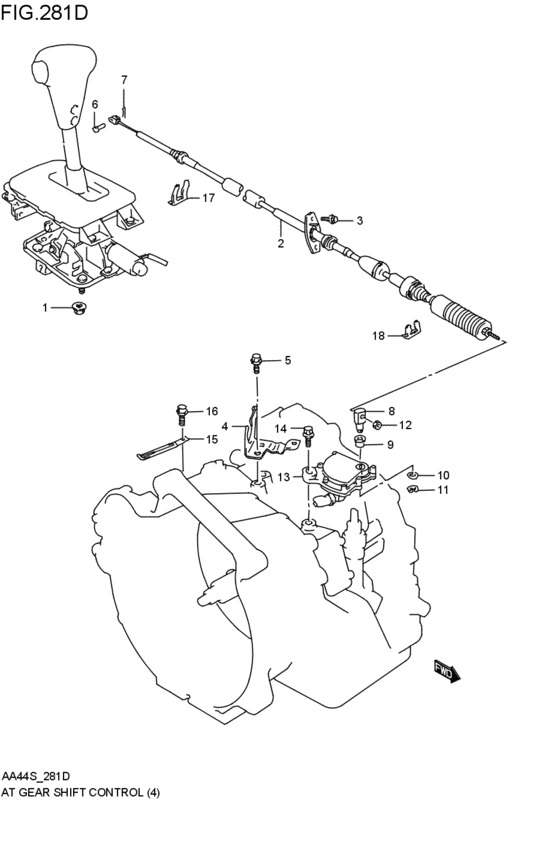

gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01) 35

#	OEM	Part name
1	08316-10083-000	Nut
1	08316-1008B-000	NUT
2	28210-62B01-000	CABLE ASSY,SELECT
3	01550-06163-000	Bolt
3	01550-0616B-000	Bolt
3	01550-0616A-000	Bolt
4	28221-62B00-000	BRACKET,SELECT CABLE
5	01550-08163-000	Bolt, holder
5	01550-0816B-000	Bolt
5	01550-0816A-000	Bolt - Bolt, rear
6	09200-06046-000	PIN
7	09385-06004-000	スナップピン
7	09385-06001-000	CLIP
8	28291-78233-000	JOINT,CABLE
9	09305-08012-000	BUSH
10	08322-01083-000	WASHER
10	08322-0108B-000	WASHER
10	08322-0108A-000	WASHER
11	08332-11063-000	E ring
11	08332-1106B-000	E RING - Circlip
11	08332-1106A-000	E RING - E ring, pinion
12	08310-00063-000	Nut
12	08310-0006B-000	NUT - Nut gear shift link rod
12	08310-0006A-000	NUT
13	37720-60E01-000	SWITCH ASSY,SHIFT LEVER
14	01580-08253-000	Bolt - Bolt, adjuster
14	01580-0825A-000	Bolt
15	09404-06434-000	CLAMP(L:80 T:1.0)
15	09404-06036-000	Clamp(L:80)
16	01550-06103-000	Bolt, front
16	01550-0610B-000	Bolt
16	01550-0610A-000	Bolt
17	09383-13001-000	E RING
17	09383-13003-000	E-RING
18	09383-19001-000	E RING - Clip

OEM	Part name	Category
01550-06103-000	Bolt, front	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01550-0610A-000	Bolt	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01550-0610B-000	Bolt	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01550-06163-000	Bolt	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01550-0616A-000	Bolt	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01550-0616B-000	Bolt	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01550-08163-000	Bolt, holder	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01550-0816A-000	Bolt - Bolt, rear	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01550-0816B-000	Bolt	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01580-08253-000	Bolt - Bolt, adjuster	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
01580-0825A-000	Bolt	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08310-00063-000	Nut	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08310-0006A-000	NUT	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08310-0006B-000	NUT - Nut gear shift link rod	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08316-10083-000	Nut	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08316-1008B-000	NUT	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08322-01083-000	WASHER	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08322-0108A-000	WASHER	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08322-0108B-000	WASHER	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08332-11063-000	E ring	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08332-1106A-000	E RING - E ring, pinion	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
08332-1106B-000	E RING - Circlip	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
09200-06046-000	PIN	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
09305-08012-000	BUSH	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
09383-13001-000	E RING	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
09383-13003-000	E-RING	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
09383-19001-000	E RING - Clip	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
09385-06001-000	CLIP	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
09385-06004-000	スナップピン	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
09404-06036-000	Clamp(L:80)	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
09404-06434-000	CLAMP(L:80 T:1.0)	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
28210-62B01-000	CABLE ASSY,SELECT	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
28221-62B00-000	BRACKET,SELECT CABLE	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
28291-78233-000	JOINT,CABLE	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
37720-60E01-000	SWITCH ASSY,SHIFT LEVER	gearlever control (AT:(T4,T5,T6); 1991-06-01~1999-07-01)
