Search › Model › AA44S

AA44S

Suzuki CULTUS · 1988 · 2,381 parts · 111 categories

2,381 items

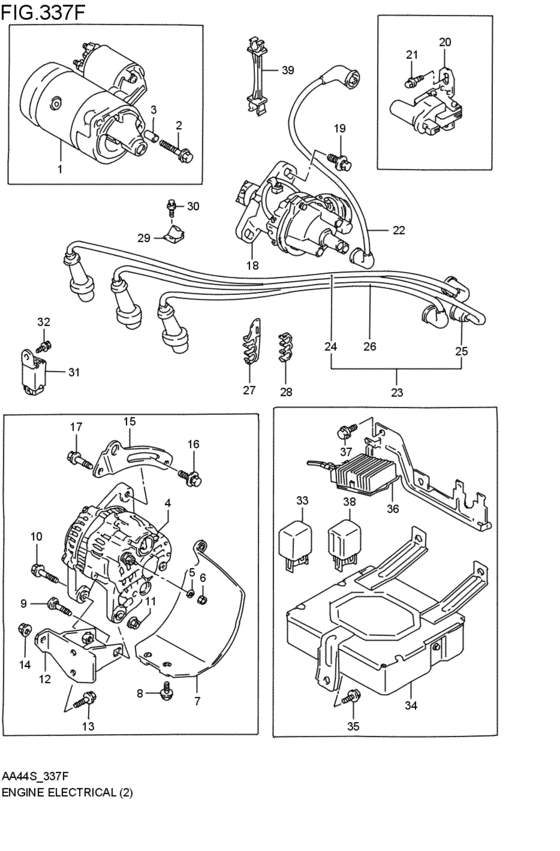

engine electrical (T4,T5,T6; 1991-06-01~1999-07-01) 63

#	OEM	Part name
1	31100-60G10-000	モータアッシ,スターティング
1	31100-60G11-000	MOTOR ASSY,STARTING
1	31100-64B12-000	モータアッシ,スターティング
1	31100-86033-REM	Starting motor
1	31100-86033-000	MOTOR ASSY,STARTING
1	31100-82330-000	モータアッシ,スターティング
1	31100-86032-000	MOTOR ASSY STARTER
2	01550-08403-000	Bolt
2	01550-0840B-000	Bolt
2	01550-0840A-000	Bolt
3	04211-11129-000	PIN
4	31400-60B30-000	ジェネレータアッシ
4	31400-60B31-000	ジェネレータアッシ
4	31400-60E12-000	ジェネレータアッシ
5	08321-01063-000	Washer, lock
5	08321-0106A-000	WASHER,LOCK
6	08310-00063-000	Nut
6	08310-0006B-000	NUT - Nut gear shift link rod
6	08310-0006A-000	NUT
7	31614-82010-000	COVER,GENERATOR
8	09117-06061-000	BOLT(6X16)
9	09107-08005-000	BOLT(8X28)
10	01550-08353-000	Bolt, rear
10	01550-0835B-000	Bolt
10	01550-0835A-000	Bolt
11	08316-10083-000	Nut
11	08316-1008B-000	NUT
12	17910-82000-000	ブラケット,ジェネレータ
12	17910-82001-000	BRACKET,GENERATOR
13	01550-08203-000	Bolt
13	01550-0820B-000	Bolt
13	01550-0820A-000	Bolt - Bolt, funnel bracket
15	17921-60B00-000	ARM,GENERATOR ADJUST
16	09118-08107-000	BOLT(8X25)
18	33100-60B50-000	Distributor assy,with ca snsr
18	33100-60E10-000	ディストリビュータアッシ
19	09138-08003-000	SCREW(8X30)
20	33410-60E20-000	COIL ASSY,IGNITION
20	33410-70G00-000	COIL ASSY,IGNITION
21	09115-06001-000	Bolt, lh - Bolt (6x16)
21	09115-06005-000	BOLT(6X16)
22	33710-50G10-000	CORD,HT NO.1
23	33705-60E00-000	コードセット,ハイテンション
23	33705-86000-000	CORD SET,HIGH TENSION
24	33730-60E00-000	コード,ハイテンション,NO.2
24	33730-86000-000	CORD,HIGH TENSION
25	33740-60E00-000	コード,ハイテンション,NO.3
25	33740-86000-000	CORD,HIGH TENSION
26	33750-60E00-000	コード,ハイテンション,NO.4
26	33750-86000-000	CORD,HIGH TENSION
27	33881-82011-000	CLAMP,HIGH TENSION CORD
28	09408-00035-000	CLIP - Clamp
29	11179-60B00-000	CLAMP,HIGH TENSION CORD
30	02162-06103-000	Bolt - Bolt, bracket
30	02162-0610A-000	SCREW
31	38850-82020-000	CONTROLLER ASSY,FUEL
32	02162-06123-000	Bolt (6x12)
32	02162-0612B-000	SCREW - Bolt
32	02162-0612A-000	SCREW - Bolt, bracket
34	33920-60E80-000	コントローラ,フューエルインジェクション
36	33960-60E20-000	RESISTOR,FUEL INJECTION
38	38860-72G00-000	RELAY ASSY - Relay, air con
39	15883-63E00-000	CLAMP,HOSE AND HT CORD

OEM	Part name	Category
01550-08203-000	Bolt	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
01550-0820B-000	Bolt	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
01550-08353-000	Bolt, rear	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
01550-0835A-000	Bolt	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
01550-0835B-000	Bolt	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
01550-08403-000	Bolt	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
01550-0840A-000	Bolt	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
01550-0840B-000	Bolt	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
02162-06103-000	Bolt - Bolt, bracket	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
02162-0610A-000	SCREW	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
02162-06123-000	Bolt (6x12)	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
02162-0612A-000	SCREW - Bolt, bracket	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
02162-0612B-000	SCREW - Bolt	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
04211-11129-000	PIN	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
08310-00063-000	Nut	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
08310-0006A-000	NUT	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
08310-0006B-000	NUT - Nut gear shift link rod	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
08316-10083-000	Nut	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
08316-1008B-000	NUT	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
08321-01063-000	Washer, lock	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
08321-0106A-000	WASHER,LOCK	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
09107-08005-000	BOLT(8X28)	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
09115-06001-000	Bolt, lh - Bolt (6x16)	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
09115-06005-000	BOLT(6X16)	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
09117-06061-000	BOLT(6X16)	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
09118-08107-000	BOLT(8X25)	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
09138-08003-000	SCREW(8X30)	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
09408-00035-000	CLIP - Clamp	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
11179-60B00-000	CLAMP,HIGH TENSION CORD	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
15883-63E00-000	CLAMP,HOSE AND HT CORD	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
17910-82000-000	ブラケット,ジェネレータ	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
17910-82001-000	BRACKET,GENERATOR	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
17921-60B00-000	ARM,GENERATOR ADJUST	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31100-60G10-000	モータアッシ,スターティング	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31100-60G11-000	MOTOR ASSY,STARTING	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31100-64B12-000	モータアッシ,スターティング	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31100-82330-000	モータアッシ,スターティング	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31100-86032-000	MOTOR ASSY STARTER	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31100-86033-000	MOTOR ASSY,STARTING	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31100-86033-REM	Starting motor	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31400-60B30-000	ジェネレータアッシ	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31400-60B31-000	ジェネレータアッシ	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31400-60E12-000	ジェネレータアッシ	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
31614-82010-000	COVER,GENERATOR	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33100-60B50-000	Distributor assy,with ca snsr	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33100-60E10-000	ディストリビュータアッシ	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33410-60E20-000	COIL ASSY,IGNITION	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33410-70G00-000	COIL ASSY,IGNITION	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33705-60E00-000	コードセット,ハイテンション	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33705-86000-000	CORD SET,HIGH TENSION	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33710-50G10-000	CORD,HT NO.1	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33730-60E00-000	コード,ハイテンション,NO.2	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33730-86000-000	CORD,HIGH TENSION	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33740-60E00-000	コード,ハイテンション,NO.3	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33740-86000-000	CORD,HIGH TENSION	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33750-60E00-000	コード,ハイテンション,NO.4	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33750-86000-000	CORD,HIGH TENSION	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33881-82011-000	CLAMP,HIGH TENSION CORD	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33920-60E80-000	コントローラ,フューエルインジェクション	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
33960-60E20-000	RESISTOR,FUEL INJECTION	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
38850-82020-000	CONTROLLER ASSY,FUEL	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
38860-72G00-000	RELAY ASSY - Relay, air con	engine electrical (T4,T5,T6; 1991-06-01~1999-07-01)
