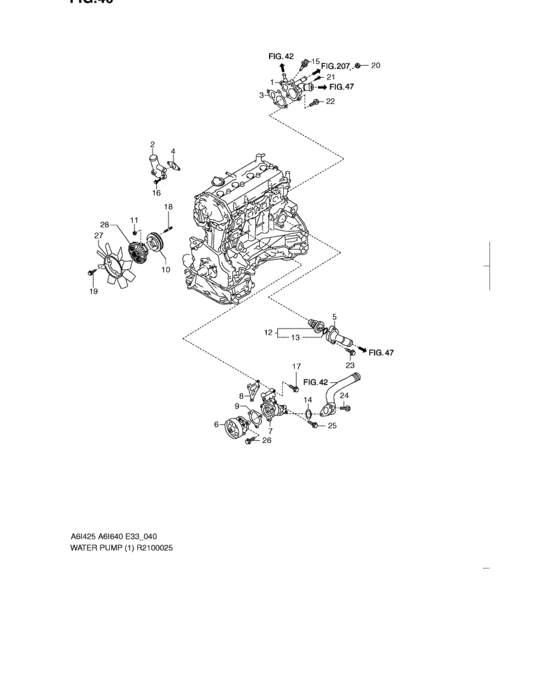

Water pump (QR25DE)
19
| # | OEM | Part name |
|---|
| 1 |
17570-82Z10-000 |
Case, water outlet |
| 2 |
17570-82Z00-000 |
Case, water outlet |
| 3 |
17699-82Z10-000 |
Gasket, wtr outlet case |
| 4 |
17699-82Z00-000 |
Gasket, wtr outlet case |
| 5 |
17840-82Z00-000 |
Cap, water inlet |
| 6 |
17400-82Z10-000 |
Pump Assy, Water |
| 7 |
17410-82Z00-000 |
Cover, water pump |
| 8 |
17431-82Z00-000 |
Gasket, Water Pump |
| 9 |
17431-82Z10-000 |
Gasket, Water Pump |
| 10 |
17350-82Z00-000 |
Pulley, fan/water pump |
| 11 |
28224-82Z70-000 |
Nut |
| 12 |
17670-82Z10-000 |
Thermostat assy |
| 13 |
17679-50Z02-000 |
Oリング,サーモスタット |
| 14 |
17679-82Z20-000 |
O ring, thermostat |
| 15 |
13650-82Z00-000 |
Sensor assy, water temp |
| 25 |
12838-82Z20-000 |
Bolt |
| 27 |
17110-82Z00-000 |
Fan, cooling |
| 28 |
17120-82Z00-000 |
Coupling assy, fan |
| 28 |
17120-82Z20-000 |
Coupling assy, fan |
| OEM |
Part name |
Category |
| 12838-82Z20-000 |
Bolt |
Water pump (QR25DE) |
| 13650-82Z00-000 |
Sensor assy, water temp |
Water pump (QR25DE) |
| 17110-82Z00-000 |
Fan, cooling |
Water pump (QR25DE) |
| 17120-82Z00-000 |
Coupling assy, fan |
Water pump (QR25DE) |
| 17120-82Z20-000 |
Coupling assy, fan |
Water pump (QR25DE) |
| 17350-82Z00-000 |
Pulley, fan/water pump |
Water pump (QR25DE) |
| 17400-82Z10-000 |
Pump Assy, Water |
Water pump (QR25DE) |
| 17410-82Z00-000 |
Cover, water pump |
Water pump (QR25DE) |
| 17431-82Z00-000 |
Gasket, Water Pump |
Water pump (QR25DE) |
| 17431-82Z10-000 |
Gasket, Water Pump |
Water pump (QR25DE) |
| 17570-82Z00-000 |
Case, water outlet |
Water pump (QR25DE) |
| 17570-82Z10-000 |
Case, water outlet |
Water pump (QR25DE) |
| 17670-82Z10-000 |
Thermostat assy |
Water pump (QR25DE) |
| 17679-50Z02-000 |
Oリング,サーモスタット |
Water pump (QR25DE) |
| 17679-82Z20-000 |
O ring, thermostat |
Water pump (QR25DE) |
| 17699-82Z00-000 |
Gasket, wtr outlet case |
Water pump (QR25DE) |
| 17699-82Z10-000 |
Gasket, wtr outlet case |
Water pump (QR25DE) |
| 17840-82Z00-000 |
Cap, water inlet |
Water pump (QR25DE) |
| 28224-82Z70-000 |
Nut |
Water pump (QR25DE) |
