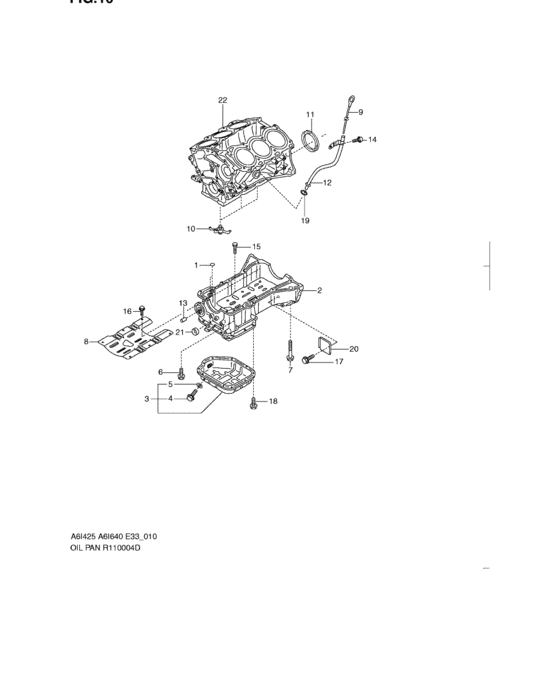

Oil pan (VQ40DE)
17
| # | OEM | Part name |
|---|
| 1 |
11519-50Z01-000 |
Oリング,オイルパン |
| 2 |
11520-82Z30-000 |
Oil pan, upper |
| 3 |
11520-82Z20-000 |
Pan assy, oil |
| 4 |
11518-50Z02-000 |
プラグ,オイルパンドレーン |
| 5 |
11517-50Z00-000 |
ワッシャ,ドレーンプラグ |
| 6 |
11512-82Z10-000 |
Bolt |
| 7 |
11512-82Z20-000 |
Bolt |
| 8 |
11540-82Z00-000 |
Plate, oil baffle |
| 9 |
16910-82Z10-000 |
Gauge, oil level |
| 10 |
11211-82Z00-000 |
Jet |
| 11 |
12225-82Z00-000 |
Seal, oil crank shaft rr |
| 12 |
16930-82Z10-000 |
Guide, oil level gauge |
| 13 |
11511-82Z00-000 |
Valve, oil pressure |
| 14 |
33228-50Z00-000 |
ボルト,8X16 |
| 19 |
16935-50Z00-000 |
Oリング,レベルゲージ |
| 20 |
11320-82Z00-000 |
Cover, rear plate |
| 22 |
11200-82Z10-000 |
Block assy, cylinder |
| OEM |
Part name |
Category |
| 11200-82Z10-000 |
Block assy, cylinder |
Oil pan (VQ40DE) |
| 11211-82Z00-000 |
Jet |
Oil pan (VQ40DE) |
| 11320-82Z00-000 |
Cover, rear plate |
Oil pan (VQ40DE) |
| 11511-82Z00-000 |
Valve, oil pressure |
Oil pan (VQ40DE) |
| 11512-82Z10-000 |
Bolt |
Oil pan (VQ40DE) |
| 11512-82Z20-000 |
Bolt |
Oil pan (VQ40DE) |
| 11517-50Z00-000 |
ワッシャ,ドレーンプラグ |
Oil pan (VQ40DE) |
| 11518-50Z02-000 |
プラグ,オイルパンドレーン |
Oil pan (VQ40DE) |
| 11519-50Z01-000 |
Oリング,オイルパン |
Oil pan (VQ40DE) |
| 11520-82Z20-000 |
Pan assy, oil |
Oil pan (VQ40DE) |
| 11520-82Z30-000 |
Oil pan, upper |
Oil pan (VQ40DE) |
| 11540-82Z00-000 |
Plate, oil baffle |
Oil pan (VQ40DE) |
| 12225-82Z00-000 |
Seal, oil crank shaft rr |
Oil pan (VQ40DE) |
| 16910-82Z10-000 |
Gauge, oil level |
Oil pan (VQ40DE) |
| 16930-82Z10-000 |
Guide, oil level gauge |
Oil pan (VQ40DE) |
| 16935-50Z00-000 |
Oリング,レベルゲージ |
Oil pan (VQ40DE) |
| 33228-50Z00-000 |
ボルト,8X16 |
Oil pan (VQ40DE) |
