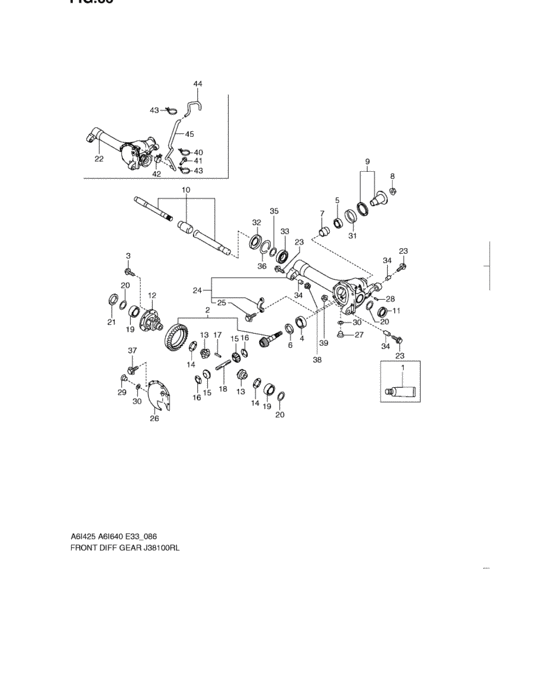

Front diff gear (4WD)
85
| # | OEM | Part name |
|---|
| 1 |
27300-82ZA0-000 |
Gear set, bevel pinion |
| 1 |
27300-82ZB0-000 |
Gear set, bevel pinion |
| 2 |
27412-82Z00-000 |
Bolt |
| 3 |
27391-82Z00-000 |
Bearing |
| 4 |
27392-82Z20-000 |
Bearing |
| 5 |
29265-82Z00-309 |
Washer - T:3.09 |
| 5 |
29265-82Z00-312 |
Washer - T:3.12 |
| 5 |
29265-82Z00-315 |
Washer - T:3.15 |
| 5 |
29265-82Z00-318 |
Washer - T:3.18 |
| 5 |
29265-82Z00-321 |
Washer - T:3.21 |
| 5 |
29265-82Z00-324 |
Washer - T:3.24 |
| 5 |
29265-82Z00-327 |
Washer - T:3.27 |
| 5 |
29265-82Z00-330 |
Washer - T:3.30 |
| 5 |
29265-82Z00-333 |
Washer - T:3.33 |
| 5 |
29265-82Z00-336 |
Washer - T:3.36 |
| 5 |
29265-82Z00-339 |
Washer - T:3.39 |
| 5 |
29265-82Z00-342 |
Washer - T:3.42 |
| 5 |
29265-82Z00-345 |
Washer - T:3.45 |
| 5 |
29265-82Z00-348 |
Washer - T:3.48 |
| 5 |
29265-82Z00-351 |
Washer - T:3.51 |
| 5 |
29265-82Z00-354 |
Washer - T:3.54 |
| 5 |
29265-82Z00-357 |
Washer - T:3.57 |
| 5 |
29265-82Z00-360 |
Washer - T:3.60 |
| 5 |
29265-82Z00-363 |
Washer - T:3.63 |
| 5 |
29265-82Z00-366 |
Washer - T:3.66 |
| 6 |
27315-82Z00-000 |
Spacer, drive pinion |
| 7 |
27816-50Z01-000 |
ナット |
| 8 |
27110-82Z20-000 |
Flange, companion |
| 9 |
27351-82Z00-000 |
Shaft, side differential |
| 10 |
44118-82Z10-000 |
Seal, oil |
| 11 |
27411-82Z20-000 |
Case, differential |
| 12 |
27341-82Z10-000 |
Gear, side differential |
| 13 |
29266-82Z00-075 |
Washer - T:0.75 |
| 13 |
29266-82Z00-078 |
Washer - T:0.78 |
| 13 |
29266-82Z00-081 |
Washer - T:0.81 |
| 13 |
29266-82Z00-084 |
Washer - T:0.84 |
| 13 |
29266-82Z00-087 |
Washer - T:0.87 |
| 13 |
29266-82Z00-090 |
Washer - T:0.90 |
| 13 |
29266-82Z00-093 |
Washer - T:0.93 |
| 13 |
29266-82Z00-096 |
Washer - T:0.96 |
| 14 |
27331-82Z10-000 |
Pinion, differential |
| 15 |
27332-82Z10-000 |
Washer |
| 16 |
27352-50Z00-000 |
ピン |
| 17 |
27351-82Z20-000 |
Shaft, differential pin |
| 18 |
27391-82Z20-000 |
Bearing |
| 19 |
27453-82Z00-195 |
Shim - T:1.95 |
| 19 |
27453-82Z00-200 |
Shim - T:2.00 |
| 19 |
27453-82Z00-205 |
Shim - T:2.05 |
| 19 |
27453-82Z00-210 |
Shim - T:2.10 |
| 19 |
27453-82Z00-215 |
Shim - T:2.15 |
| 19 |
27453-82Z00-220 |
Shim - T:2.20 |
| 19 |
27453-82Z00-225 |
Shim - T:2.25 |
| 19 |
27453-82Z00-230 |
Shim - T:2.30 |
| 19 |
27453-82Z00-235 |
Shim - T:2.35 |
| 19 |
27453-82Z00-240 |
Shim - T:2.40 |
| 19 |
27453-82Z00-245 |
Shim - T:2.45 |
| 19 |
27453-82Z00-250 |
Shim - T:2.50 |
| 19 |
27453-82Z00-255 |
Shim - T:2.55 |
| 19 |
27453-82Z00-260 |
Shim - T:2.60 |
| 19 |
27453-82Z00-265 |
Shim - T:2.65 |
| 20 |
27453-82ZV0-000 |
Shim |
| 21 |
27450-82Z00-000 |
Drive, final front |
| 21 |
27450-82Z10-000 |
Drive, final front |
| 22 |
27691-82Z00-000 |
Bolt |
| 23 |
27451-82Z00-000 |
Carrier, gear |
| 24 |
27619-82Z00-000 |
Bolt |
| 25 |
27410-82Z00-000 |
Cover, front final drive |
| 26 |
27322-50Z01-000 |
プラグ,ドレーン |
| 26 |
27322-50Z02-000 |
New Genuine Part |
| 27 |
29515-82Z50-000 |
Pipe, breather |
| 28 |
27321-50Z01-000 |
プラグ,レベル |
| 28 |
27321-50Z02-000 |
New Genuine Part |
| 28 |
27321-50Z03-000 |
New Genuine Part |
| 29 |
29514-50Z00-000 |
ガスケット |
| 30 |
27431-82Z01-000 |
Seal oil |
| 30 |
27431-82Z30-000 |
Seal, oil |
| 31 |
44118-82Z40-000 |
Seal, grease |
| 32 |
27391-82Z30-000 |
Bearing |
| 33 |
27555-82Z00-000 |
Insulator |
| 39 |
24756-82Z30-000 |
Clip |
| 40 |
24743-82Z00-000 |
Connector |
| 41 |
15882-50Z31-000 |
Сlamp |
| 42 |
24851-50Z00-000 |
クリップ |
| 43 |
27891-82Z00-000 |
Tube, breather |
| 44 |
27891-82Z10-000 |
Tube, breather |
