A6I425

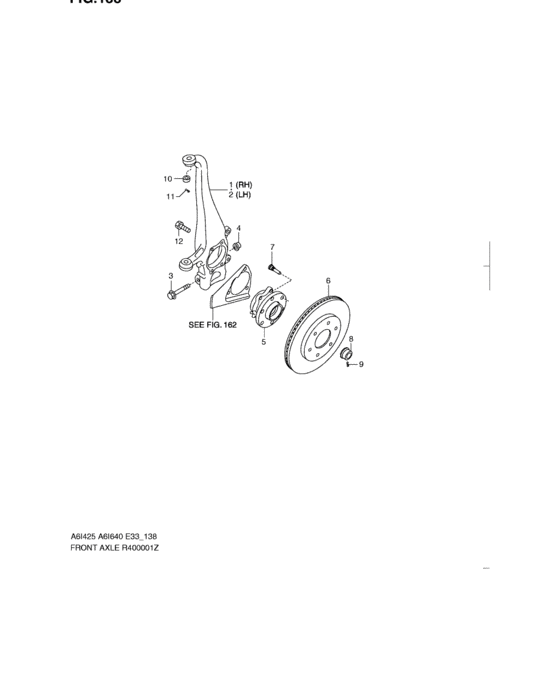

Front axle (FRONT AXLE) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 45111-82Z00-000 | Knuckle, steering rh |
| 2 | 45151-82Z00-000 | Knuckle, steering lh |
| 3 | 45155-82Z00-000 | Bolt |
| 4 | 18215-82Z50-000 | Nut |
| 5 | 43420-82Z10-000 | Hub assy, front wheel |
| 5 | 43420-82Z00-000 | Hub assy, front wheel |
| 6 | 55311-82Z10-000 | Disc, front brake |
| 6 | 55311-82Z00-000 | Disc, front brake |
| 7 | 43411-82Z00-000 | Bolt |
| 8 | 43459-50Z00-000 | ナット |
| 9 | 43216-50Z00-000 | ピン |
| 11 | 45771-82Z00-000 | Pin |
| 12 | 45157-50Z00-000 | ボルト,12X35 |
| OEM | Part name | Category |
|---|---|---|
| 18215-82Z50-000 | Nut | Front axle (FRONT AXLE) |
| 43216-50Z00-000 | ピン | Front axle (FRONT AXLE) |
| 43411-82Z00-000 | Bolt | Front axle (FRONT AXLE) |
| 43420-82Z00-000 | Hub assy, front wheel | Front axle (FRONT AXLE) |
| 43420-82Z10-000 | Hub assy, front wheel | Front axle (FRONT AXLE) |
| 43459-50Z00-000 | ナット | Front axle (FRONT AXLE) |
| 45111-82Z00-000 | Knuckle, steering rh | Front axle (FRONT AXLE) |
| 45151-82Z00-000 | Knuckle, steering lh | Front axle (FRONT AXLE) |
| 45155-82Z00-000 | Bolt | Front axle (FRONT AXLE) |
| 45157-50Z00-000 | ボルト,12X35 | Front axle (FRONT AXLE) |
| 45771-82Z00-000 | Pin | Front axle (FRONT AXLE) |
| 55311-82Z00-000 | Disc, front brake | Front axle (FRONT AXLE) |
| 55311-82Z10-000 | Disc, front brake | Front axle (FRONT AXLE) |
