Search › Model › A6I425
A6I425

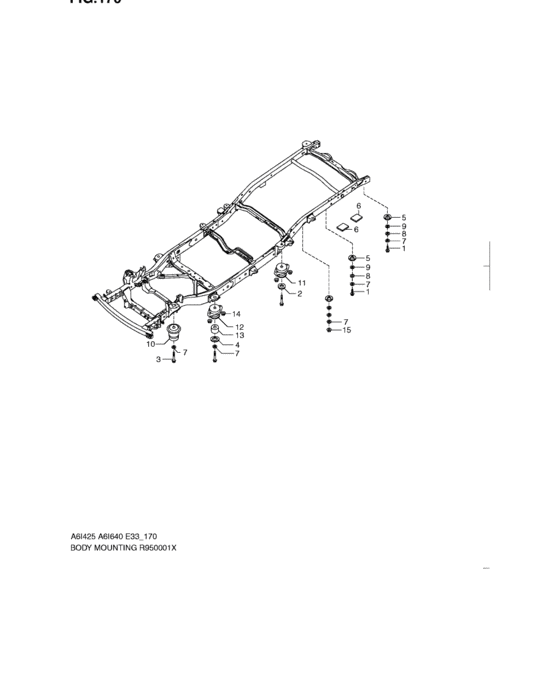

Body mounting (BODY MOUNTING) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 71516-82Z20-000 | Bolt |
| 2 | 71517-82Z00-000 | Washer |
| 3 | 71516-82Z00-000 | Bolt |
| 4 | 71518-82Z00-000 | Sheet |
| 5 | 71632-82Z00-000 | Shim, body mounting |
| 6 | 71632-82Z20-000 | Shim, body mounting |
| 7 | 71632-82Z10-000 | Shim, body mounting |
| 8 | 86723-82Z00-000 | Washer |
| 9 | 71515-82Z00-000 | Spacer |
| 10 | 71511-82Z00-000 | Insulator, mounting |
| 11 | 71511-82Z10-000 | Insulator, mounting |
| 12 | 71511-82Z20-000 | Insulator, mounting |
| 13 | 71517-82Z10-000 | Washer, body mounting |
| OEM | Part name | Category |
|---|---|---|
| 71511-82Z00-000 | Insulator, mounting | Body mounting (BODY MOUNTING) |
| 71511-82Z10-000 | Insulator, mounting | Body mounting (BODY MOUNTING) |
| 71511-82Z20-000 | Insulator, mounting | Body mounting (BODY MOUNTING) |
| 71515-82Z00-000 | Spacer | Body mounting (BODY MOUNTING) |
| 71516-82Z00-000 | Bolt | Body mounting (BODY MOUNTING) |
| 71516-82Z20-000 | Bolt | Body mounting (BODY MOUNTING) |
| 71517-82Z00-000 | Washer | Body mounting (BODY MOUNTING) |
| 71517-82Z10-000 | Washer, body mounting | Body mounting (BODY MOUNTING) |
| 71518-82Z00-000 | Sheet | Body mounting (BODY MOUNTING) |
| 71632-82Z00-000 | Shim, body mounting | Body mounting (BODY MOUNTING) |
| 71632-82Z10-000 | Shim, body mounting | Body mounting (BODY MOUNTING) |
| 71632-82Z20-000 | Shim, body mounting | Body mounting (BODY MOUNTING) |
| 86723-82Z00-000 | Washer | Body mounting (BODY MOUNTING) |
