A6I425

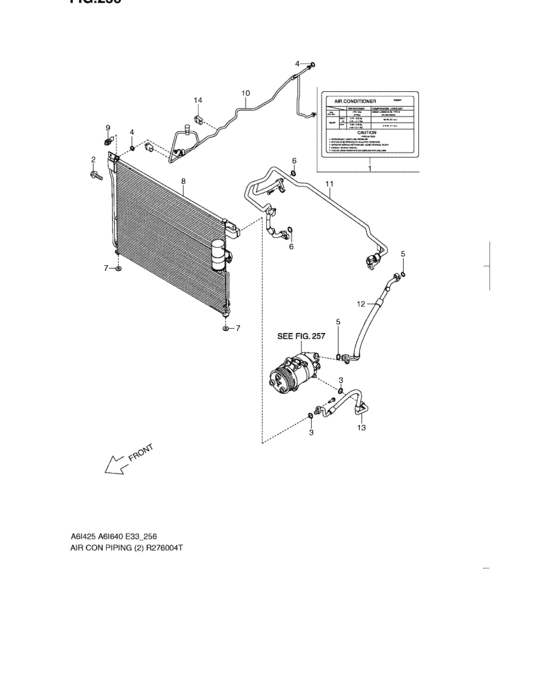

Air con piping (VQ40DE) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 95955-82Z10-000 | Label, air conditioner |
| 2 | 34115-82Z00-000 | Bolt |
| 3 | 95718-50Z00-000 | Oリング |
| 4 | 95895-50Z01-000 | Oリング |
| 5 | 95718-50Z10-000 | Oリング |
| 6 | 95417-50Z20-000 | Oリング |
| 7 | 95851-82Z00-000 | Bush, condenser |
| 8 | 95310-82Z00-000 | Condenser assy |
| 9 | 95526-82Z01-000 | Sensor, pressure |
| 10 | 95732-82Z00-000 | Pipe, cooler high |
| 11 | 95731-82Z00-000 | Pipe, cooler low |
| 12 | 95720-82Z10-000 | Hose, low |
| 13 | 95711-82Z10-000 | Hose, discharge |
| 14 | 95771-82Z00-000 | Clip |
| OEM | Part name | Category |
|---|---|---|
| 34115-82Z00-000 | Bolt | Air con piping (VQ40DE) |
| 95310-82Z00-000 | Condenser assy | Air con piping (VQ40DE) |
| 95417-50Z20-000 | Oリング | Air con piping (VQ40DE) |
| 95526-82Z01-000 | Sensor, pressure | Air con piping (VQ40DE) |
| 95711-82Z10-000 | Hose, discharge | Air con piping (VQ40DE) |
| 95718-50Z00-000 | Oリング | Air con piping (VQ40DE) |
| 95718-50Z10-000 | Oリング | Air con piping (VQ40DE) |
| 95720-82Z10-000 | Hose, low | Air con piping (VQ40DE) |
| 95731-82Z00-000 | Pipe, cooler low | Air con piping (VQ40DE) |
| 95732-82Z00-000 | Pipe, cooler high | Air con piping (VQ40DE) |
| 95771-82Z00-000 | Clip | Air con piping (VQ40DE) |
| 95851-82Z00-000 | Bush, condenser | Air con piping (VQ40DE) |
| 95895-50Z01-000 | Oリング | Air con piping (VQ40DE) |
| 95955-82Z10-000 | Label, air conditioner | Air con piping (VQ40DE) |
