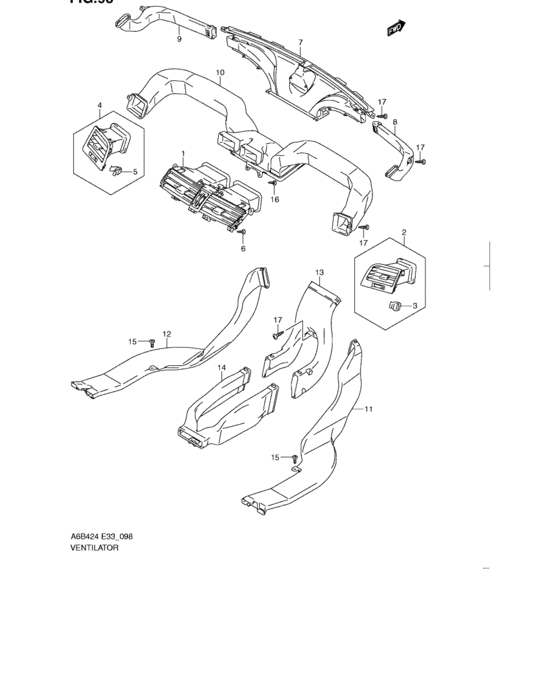

Ventlator (VENTLATOR)
18
| # | OEM | Part name |
|---|
| 1 |
73610-57L00-C48 |
LOUVER,CTR VENT |
| 2 |
73630-57L00-C48 |
LOUVER,SIDE VENT,R |
| 2 |
73630-57L00-GMN |
LOUVER,SIDE VENT,R |
| 3 |
09409-08342-000 |
CLIP |
| 4 |
73640-57L00-C48 |
LOUVER,SIDE VENT,L |
| 4 |
73640-57L00-GMN |
LOUVER,SIDE VENT,L |
| 6 |
03541-0516A-000 |
SCREW |
| 7 |
73661-57L00-000 |
NOZZLE,DEFROSTER |
| 8 |
73681-57L00-000 |
DUCT,DEMISTER,R |
| 9 |
73691-57L00-000 |
DUCT,DEMISTER,L |
| 10 |
74620-57L00-000 |
Duct, vent |
| 10 |
74620-57L01-000 |
DUCT,VENT |
| 11 |
74652-57L00-000 |
DUCT,RR,R |
| 12 |
74653-57L00-000 |
DUCT,RR,L |
| 13 |
74661-57L00-000 |
DUCT,RR VENT NO.1 |
| 14 |
74662-57L00-000 |
DUCT,RR VENT NO.2 |
| 15 |
09409-07308-5PK |
CLIP(BLACK) |
| 16 |
03241-0512A-000 |
SCREW |
| OEM |
Part name |
Category |
| 03241-0512A-000 |
SCREW |
Ventlator (VENTLATOR) |
| 03541-0516A-000 |
SCREW |
Ventlator (VENTLATOR) |
| 09409-07308-5PK |
CLIP(BLACK) |
Ventlator (VENTLATOR) |
| 09409-08342-000 |
CLIP |
Ventlator (VENTLATOR) |
| 73610-57L00-C48 |
LOUVER,CTR VENT |
Ventlator (VENTLATOR) |
| 73630-57L00-C48 |
LOUVER,SIDE VENT,R |
Ventlator (VENTLATOR) |
| 73630-57L00-GMN |
LOUVER,SIDE VENT,R |
Ventlator (VENTLATOR) |
| 73640-57L00-C48 |
LOUVER,SIDE VENT,L |
Ventlator (VENTLATOR) |
| 73640-57L00-GMN |
LOUVER,SIDE VENT,L |
Ventlator (VENTLATOR) |
| 73661-57L00-000 |
NOZZLE,DEFROSTER |
Ventlator (VENTLATOR) |
| 73681-57L00-000 |
DUCT,DEMISTER,R |
Ventlator (VENTLATOR) |
| 73691-57L00-000 |
DUCT,DEMISTER,L |
Ventlator (VENTLATOR) |
| 74620-57L00-000 |
Duct, vent |
Ventlator (VENTLATOR) |
| 74620-57L01-000 |
DUCT,VENT |
Ventlator (VENTLATOR) |
| 74652-57L00-000 |
DUCT,RR,R |
Ventlator (VENTLATOR) |
| 74653-57L00-000 |
DUCT,RR,L |
Ventlator (VENTLATOR) |
| 74661-57L00-000 |
DUCT,RR VENT NO.1 |
Ventlator (VENTLATOR) |
| 74662-57L00-000 |
DUCT,RR VENT NO.2 |
Ventlator (VENTLATOR) |
