Search › Model › A6B424
A6B424

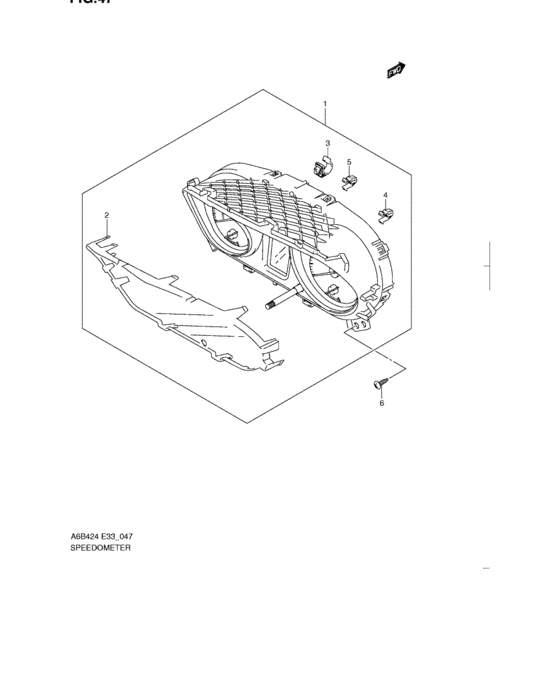

Speedometer (SPEEDOMETER) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 34100-57LQ0-000 | Speedometer assy,comb |
| 1 | 34100-57LQ3-000 | SPEEDOMETER ASSY,COMB |
| 1 | 34101-57L10-000 | Speedometer assy,comb |
| 1 | 34101-57L13-000 | SPEEDOMETER ASSY,COMB |
| 2 | 34112-57L00-000 | GLASS,METER WINDOW |
| 3 | 09403-13309-000 | CLAMP |
| 4 | 09409-08342-000 | CLIP |
| 5 | 09409-08326-000 | CLIP |
| 6 | 03541-0516A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03541-0516A-000 | SCREW | Speedometer (SPEEDOMETER) |
| 09403-13309-000 | CLAMP | Speedometer (SPEEDOMETER) |
| 09409-08326-000 | CLIP | Speedometer (SPEEDOMETER) |
| 09409-08342-000 | CLIP | Speedometer (SPEEDOMETER) |
| 34100-57LQ0-000 | Speedometer assy,comb | Speedometer (SPEEDOMETER) |
| 34100-57LQ3-000 | SPEEDOMETER ASSY,COMB | Speedometer (SPEEDOMETER) |
| 34101-57L10-000 | Speedometer assy,comb | Speedometer (SPEEDOMETER) |
| 34101-57L13-000 | SPEEDOMETER ASSY,COMB | Speedometer (SPEEDOMETER) |
| 34112-57L00-000 | GLASS,METER WINDOW | Speedometer (SPEEDOMETER) |
