Search › Model › A6B424
A6B424

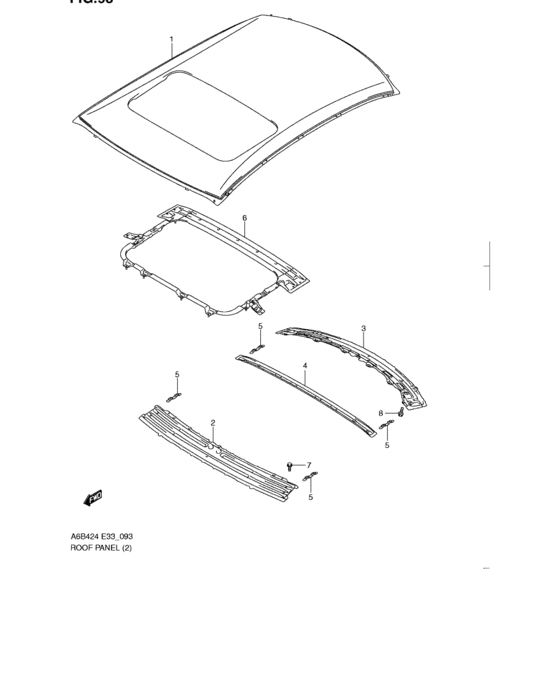

Roof panel (GTS,SLS) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 65111-57L10-000 | PANEL,ROOF |
| 2 | 65120-57L10-000 | Member, roof front |
| 2 | 65120-57L14-000 | MEMBER,ROOF FR INR |
| 3 | 65131-57L00-000 | MEMBER,ROOF BACK INR |
| 4 | 65162-57L00-000 | MEMBER,ROOF PANEL CTR NO.3 |
| 5 | 65171-57L00-000 | BRACKET,ROOF CARRIER |
| 6 | 65180-57L10-000 | REINFORCEMENT,SLIDING ROOF |
| 7 | 01550-0612A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Roof panel (GTS,SLS) |
| 65111-57L10-000 | PANEL,ROOF | Roof panel (GTS,SLS) |
| 65120-57L10-000 | Member, roof front | Roof panel (GTS,SLS) |
| 65120-57L14-000 | MEMBER,ROOF FR INR | Roof panel (GTS,SLS) |
| 65131-57L00-000 | MEMBER,ROOF BACK INR | Roof panel (GTS,SLS) |
| 65162-57L00-000 | MEMBER,ROOF PANEL CTR NO.3 | Roof panel (GTS,SLS) |
| 65171-57L00-000 | BRACKET,ROOF CARRIER | Roof panel (GTS,SLS) |
| 65180-57L10-000 | REINFORCEMENT,SLIDING ROOF | Roof panel (GTS,SLS) |
