A6B424

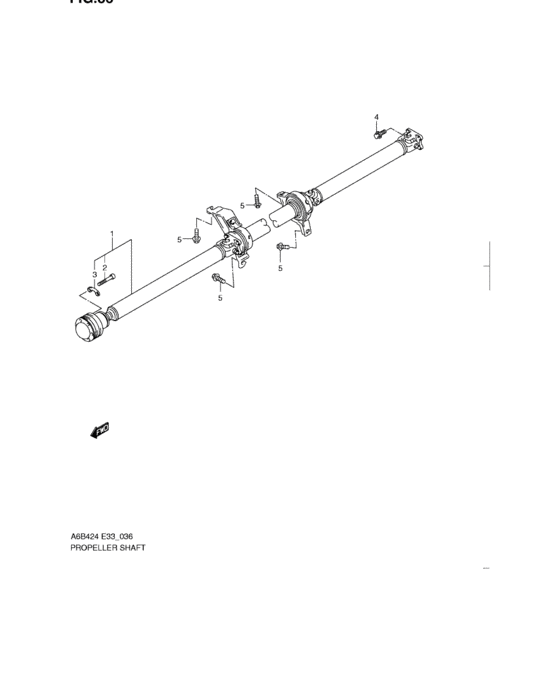

Propeller shaft (4WD) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 27100-57L00-000 | SHAFT ASSY,PROPELLER |
| 2 | 27251-57L00-000 | Bolt |
| 3 | 27252-57L00-000 | WASHER |
| 4 | 09117-08079-000 | BOLT(8X20) |
| 5 | 09118-10073-000 | BOLT(10X30) |
| OEM | Part name | Category |
|---|---|---|
| 09117-08079-000 | BOLT(8X20) | Propeller shaft (4WD) |
| 09118-10073-000 | BOLT(10X30) | Propeller shaft (4WD) |
| 27100-57L00-000 | SHAFT ASSY,PROPELLER | Propeller shaft (4WD) |
| 27251-57L00-000 | Bolt | Propeller shaft (4WD) |
| 27252-57L00-000 | WASHER | Propeller shaft (4WD) |
