A6B424

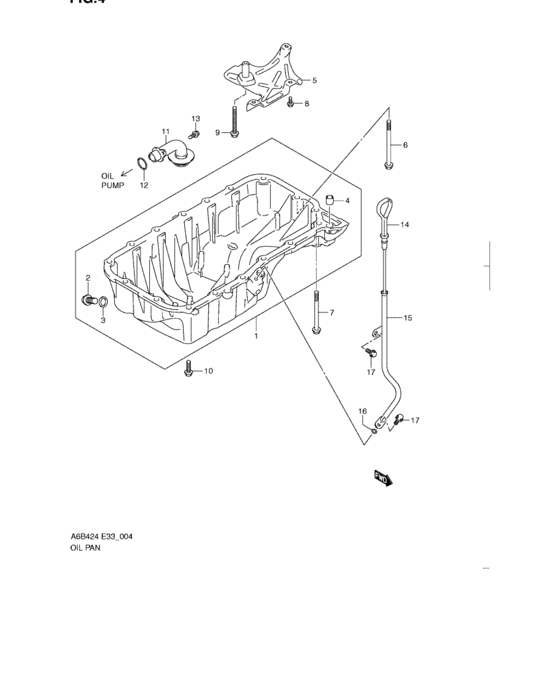

Oil pan (OIL PAN) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 11500-85830-000 | PAN SET,OIL |
| 2 | 11518-63J10-000 | Plug,Oil Drain |
| 3 | 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union |
| 4 | 04211-13149-000 | PIN |
| 5 | 11540-78K00-000 | PLATE,OIL BAFFLE |
| 6 | 09103-08525-000 | BOLT(8X120) |
| 7 | 09103-08230-000 | BOLT(8X100) - Bolt (8x100) |
| 8 | 01550-0612A-000 | Bolt |
| 9 | 01550-0645A-000 | Bolt |
| 10 | 01550-0825A-000 | Bolt |
| 11 | 16520-57L00-000 | STRAINER,OIL PUMP |
| 12 | 09280-22020-000 | O RING(D:2.4,ID:21.8) - O ring (d:2.4,id:21.8) |
| 13 | 01550-0616A-000 | Bolt |
| 14 | 16910-54L01-000 | GAUGE,OIL LEVEL |
| 15 | 16930-54L01-000 | GUIDE,OIL LEVEL GAUGE |
| 16 | 09280-10016-000 | O RING(D:1.9,ID:9.8) |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Oil pan (OIL PAN) |
| 01550-0616A-000 | Bolt | Oil pan (OIL PAN) |
| 01550-0645A-000 | Bolt | Oil pan (OIL PAN) |
| 01550-0825A-000 | Bolt | Oil pan (OIL PAN) |
| 04211-13149-000 | PIN | Oil pan (OIL PAN) |
| 09103-08230-000 | BOLT(8X100) - Bolt (8x100) | Oil pan (OIL PAN) |
| 09103-08525-000 | BOLT(8X120) | Oil pan (OIL PAN) |
| 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union | Oil pan (OIL PAN) |
| 09280-10016-000 | O RING(D:1.9,ID:9.8) | Oil pan (OIL PAN) |
| 09280-22020-000 | O RING(D:2.4,ID:21.8) - O ring (d:2.4,id:21.8) | Oil pan (OIL PAN) |
| 11500-85830-000 | PAN SET,OIL | Oil pan (OIL PAN) |
| 11518-63J10-000 | Plug,Oil Drain | Oil pan (OIL PAN) |
| 11540-78K00-000 | PLATE,OIL BAFFLE | Oil pan (OIL PAN) |
| 16520-57L00-000 | STRAINER,OIL PUMP | Oil pan (OIL PAN) |
| 16910-54L01-000 | GAUGE,OIL LEVEL | Oil pan (OIL PAN) |
| 16930-54L01-000 | GUIDE,OIL LEVEL GAUGE | Oil pan (OIL PAN) |
