A6B424

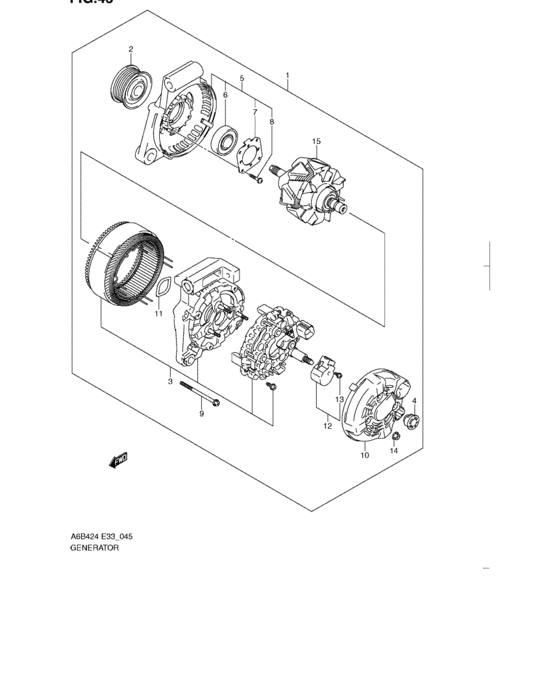

Generator (GENERATOR) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 31400-59L00-000 | Generator assy |
| 1 | 31400-59L01-000 | GENERATOR ASSY |
| 2 | 31171-59L00-000 | PULLEY |
| 3 | 31401-79K00-000 | COIL ASSY |
| 4 | 31514-79K00-000 | BUSH,TERMINAL |
| 5 | 31580-79K00-000 | Frame assy,drive end |
| 5 | 31580-79K01-000 | FRAME ASSY,DRIVE END |
| 6 | 31582-73J00-000 | Bearing |
| 6 | 31582-73J01-000 | BEARING |
| 7 | 31585-82111-000 | RETAINER,BEARING |
| 8 | 31586-73J00-000 | SCREW |
| 9 | 31587-61J20-000 | Bolt |
| 10 | 31614-79K00-000 | COVER,RR |
| 11 | 31615-77E10-000 | WASHER |
| 12 | 31656-79K00-000 | HOLDER ASSY,BRUSH |
| 13 | 31516-85250-000 | SCREW |
| 13 | 02112-0406B-000 | SCREW |
| 14 | 31692-61J20-000 | NUT |
| 15 | 31710-79K00-000 | ROTOR ASSY |
| OEM | Part name | Category |
|---|---|---|
| 02112-0406B-000 | SCREW | Generator (GENERATOR) |
| 31171-59L00-000 | PULLEY | Generator (GENERATOR) |
| 31400-59L00-000 | Generator assy | Generator (GENERATOR) |
| 31400-59L01-000 | GENERATOR ASSY | Generator (GENERATOR) |
| 31401-79K00-000 | COIL ASSY | Generator (GENERATOR) |
| 31514-79K00-000 | BUSH,TERMINAL | Generator (GENERATOR) |
| 31516-85250-000 | SCREW | Generator (GENERATOR) |
| 31580-79K00-000 | Frame assy,drive end | Generator (GENERATOR) |
| 31580-79K01-000 | FRAME ASSY,DRIVE END | Generator (GENERATOR) |
| 31582-73J00-000 | Bearing | Generator (GENERATOR) |
| 31582-73J01-000 | BEARING | Generator (GENERATOR) |
| 31585-82111-000 | RETAINER,BEARING | Generator (GENERATOR) |
| 31586-73J00-000 | SCREW | Generator (GENERATOR) |
| 31587-61J20-000 | Bolt | Generator (GENERATOR) |
| 31614-79K00-000 | COVER,RR | Generator (GENERATOR) |
| 31615-77E10-000 | WASHER | Generator (GENERATOR) |
| 31656-79K00-000 | HOLDER ASSY,BRUSH | Generator (GENERATOR) |
| 31692-61J20-000 | NUT | Generator (GENERATOR) |
| 31710-79K00-000 | ROTOR ASSY | Generator (GENERATOR) |
