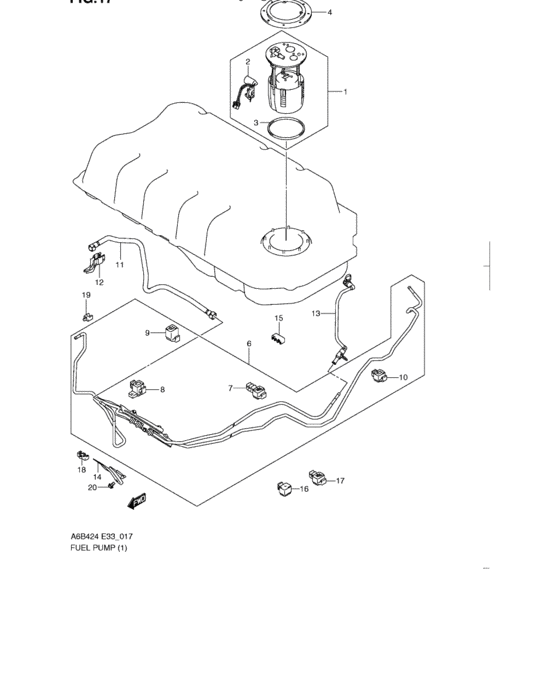

Fuel Pump (2WD)
21
| # | OEM | Part name |
|---|
| 1 |
15100-57810-000 |
PUMP SET,FUEL |
| 2 |
34810-57L20-000 |
GAUGE ASSY,FUEL SENDER |
| 3 |
15111-80J00-000 |
GASKET,FUEL PUMP |
| 4 |
15121-61J00-000 |
PLATE,FUEL PUMP |
| 5 |
08316-1006A-000 |
NUT |
| 6 |
15810-57LS0-000 |
PIPE,FUEL FEED&PURGE |
| 7 |
15892-57L00-000 |
CLAMP,FUEL PIPE |
| 8 |
15894-57L00-000 |
CLAMP,FUEL PIPE |
| 9 |
15895-57L00-000 |
CLAMP,FUEL PIPE |
| 10 |
15899-57L00-000 |
CLAMP,FUEL PIPE |
| 11 |
15815-57L00-000 |
PIPE ASSY,FUEL FEED |
| 12 |
15816-57L00-000 |
STOPPER,FUEL PIPE |
| 13 |
15820-57L00-000 |
PIPE,FUEL TANK SIDE |
| 14 |
15871-57L00-000 |
PROTECTOR,FUEL PIPE |
| 15 |
15891-57L00-000 |
CLAMP,FUEL PIPE |
| 16 |
15893-57L01-000 |
Clamp,fuel pipe |
| 16 |
15893-57L02-000 |
CLAMP,FUEL PIPE |
| 17 |
15896-57L00-000 |
CLAMP,FUEL PIPE |
| 18 |
15897-57L00-000 |
CLAMP,FUEL PIPE |
| 19 |
15898-57L00-000 |
CLAMP,FUEL PIPE |
| 20 |
09103-06168-000 |
BOLT(6X10) |
| OEM |
Part name |
Category |
| 08316-1006A-000 |
NUT |
Fuel Pump (2WD) |
| 09103-06168-000 |
BOLT(6X10) |
Fuel Pump (2WD) |
| 15100-57810-000 |
PUMP SET,FUEL |
Fuel Pump (2WD) |
| 15111-80J00-000 |
GASKET,FUEL PUMP |
Fuel Pump (2WD) |
| 15121-61J00-000 |
PLATE,FUEL PUMP |
Fuel Pump (2WD) |
| 15810-57LS0-000 |
PIPE,FUEL FEED&PURGE |
Fuel Pump (2WD) |
| 15815-57L00-000 |
PIPE ASSY,FUEL FEED |
Fuel Pump (2WD) |
| 15816-57L00-000 |
STOPPER,FUEL PIPE |
Fuel Pump (2WD) |
| 15820-57L00-000 |
PIPE,FUEL TANK SIDE |
Fuel Pump (2WD) |
| 15871-57L00-000 |
PROTECTOR,FUEL PIPE |
Fuel Pump (2WD) |
| 15891-57L00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2WD) |
| 15892-57L00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2WD) |
| 15893-57L01-000 |
Clamp,fuel pipe |
Fuel Pump (2WD) |
| 15893-57L02-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2WD) |
| 15894-57L00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2WD) |
| 15895-57L00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2WD) |
| 15896-57L00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2WD) |
| 15897-57L00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2WD) |
| 15898-57L00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2WD) |
| 15899-57L00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2WD) |
| 34810-57L20-000 |
GAUGE ASSY,FUEL SENDER |
Fuel Pump (2WD) |
