Search › Model › A6B424

A6B424

Suzuki KIZASHI · 2,935 parts · 133 categories

2,935 items

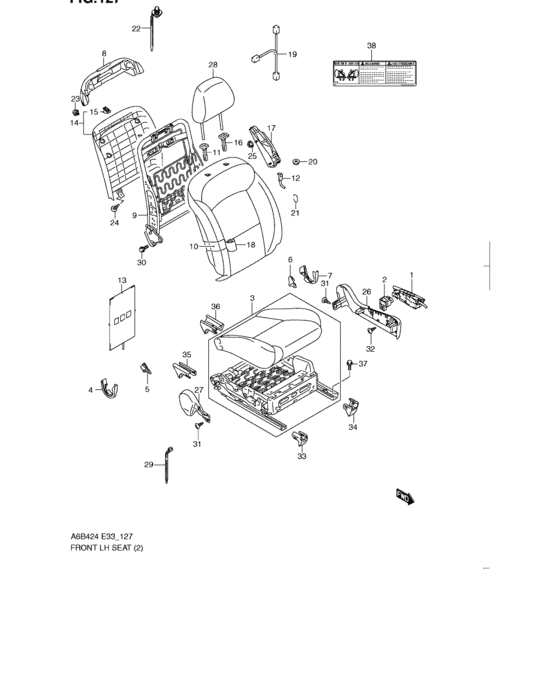

Front lh seat (SE,GTS,SLS) 75

#	OEM	Part name
1	37390-57L00-5PK	SWITCH,PWR SEAT MAIN,L
1	37390-57L00-V6N	SWITCH,PWR SEAT MAIN,L
2	37396-57L00-5PK	SWITCH,LUMBAR SUPPORT,L
2	37396-57L00-V6N	Switch, lumbar support lh - Beige
3	85102-60L40-GNF	Cushion assy, front lh - Black
3	85102-60L40-JUM	CUSHION ASSY,FR,L
3	85102-60L41-JUM	Cushion Assy,fr,l
3	85102-60L40-GNH	CUSHION ASSY,FR,L
3	85102-60L41-GNH	Cushion Assy,fr,l
3	85102-60L50-GNK	Cushion assy,fr,l
3	85102-60LH0-JUP	CUSHION ASSY,FR,L
3	85102-60LH1-JUP	Cushion Assy,fr,l
3	85102-60L50-GNM	Cushion assy, front lh - Beige
3	85102-60L50-JUT	CUSHION ASSY,FR,L
3	85102-60LH1-JUT	Cushion Assy,fr,l
4	85222-57L00-000	COVER,FR BACK FRAME,R
5	85223-57L00-5PK	COVER,RCLNG INNER,R
5	85223-57L00-V6N	COVER,RCLNG INNER,R
6	85224-57L00-5PK	COVER,RCLNG INNER,L
6	85224-57L00-V6N	COVER,RCLNG INNER,L
7	85242-57L00-000	COVER,FR BACK FRAME,L
8	85369-57L00-000	SUPPORT,FR BACK REAR
9	85803-60L10-000	FRAME ASSY,FR BACK,L
10	85860-57L10-000	PAD,FR BACK,L
11	85341-63J10-5PK	GUIDE,HEADRESTRAINT
11	85341-63J12-5PK	Guide,headrestraint
11	85341-63J10-V6N	GUIDE,HEADRESTRAINT
11	85341-63J12-V6N	Guide,headrestraint
12	85355-57L00-000	HARNESS ASSY,SIDE AIRBAG
13	85371-57L20-000	HEATER,FR BACK
14	85390-57L00-5PK	Board comp,fr back
14	85390-57L01-5PK	BOARD,FR BACK
14	85390-57L00-V6N	Board, fr back - Beige
14	85390-57L01-V6N	BOARD,FR BACK
15	09409-10308-000	CLIP
16	85840-63J10-5PK	GUIDE,HEADRESTRAINT
16	85840-63J10-V6N	GUIDE,HEADRESTRAINT
17	85850-57L00-000	MODULE ASSY,SIDE A/B,L
18	85880-57L10-GNF	Trim comp,fr back,l
18	85880-57L11-JUM	TRIM,FR BACK,L
18	85880-57L12-JUM	Trim,fr Back,l
18	85880-57L10-GNH	Trim comp,fr back,l
18	85880-57L11-GNH	TRIM,FR BACK,L
18	85880-57L12-GNH	Trim,fr Back,l
18	85880-57L10-GNK	Trim, fr back, lh - Black
18	85880-57LD0-JUP	TRIM,FR BACK,L
18	85880-57LD1-JUP	Trim,fr Back,l
18	85880-57L10-GNM	Trim comp,fr back,l
18	85880-57LD0-JUT	TRIM,FR BACK,L
18	85880-57LD1-JUT	Trim,fr Back,l
19	86759-60L00-000	HARNESS,POWER SEAT NO.2
20	09159-06076-000	NUT
21	09387-19001-000	RING
22	09407-17403-000	CLAMP(L:154) - Clamp (l:170)
23	09409-07341-000	CLIP
24	03241-0512A-000	SCREW
25	08319-3108A-000	NUT
26	85721-60L00-5PK	COVER,FR RECLINING OUTSIDE,LH (BLACK)
26	85721-60L00-V6N	COVER,FR RCLNG OUT,L
27	85741-57L00-5PK	COVER,FR RCLNG INSIDE,L
27	85741-57L00-V6N	COVER,FR RCLNG INSIDE,L
28	86401-57LA0-W3E	HEADRESTRAINT ASSY
28	86401-57LA0-W3D	HEADRESTRAINT ASSY
28	86401-57LA0-W3P	Headrestraint assy
28	86401-57LR0-W3P	HEADRESTRAINT ASSY
28	86401-57LA0-W3K	HEADRESTRAINT ASSY
28	86401-57LR0-W3K	HEADRESTRAINT ASSY
29	09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap
30	01550-1020A-000	Bolt - Bolt, bal sprocket
33	86811-60L00-000	COVER,LOWER RAIL FR END,R
34	86812-60L00-000	COVER,LOWER RAIL FR END,L
35	86813-60L00-000	COVER,LOWER RAIL RR END,R
36	86814-60L00-000	COVER,LOWER RAIL RR END,L
37	09119-08097-000	BOLT(8X25)
38	85354-59JB1-000	LABEL,SIDE AIRBAG

OEM	Part name	Category
01550-1020A-000	Bolt - Bolt, bal sprocket	Front lh seat (SE,GTS,SLS)
03241-0512A-000	SCREW	Front lh seat (SE,GTS,SLS)
08319-3108A-000	NUT	Front lh seat (SE,GTS,SLS)
09119-08097-000	BOLT(8X25)	Front lh seat (SE,GTS,SLS)
09159-06076-000	NUT	Front lh seat (SE,GTS,SLS)
09387-19001-000	RING	Front lh seat (SE,GTS,SLS)
09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap	Front lh seat (SE,GTS,SLS)
09407-17403-000	CLAMP(L:154) - Clamp (l:170)	Front lh seat (SE,GTS,SLS)
09409-07341-000	CLIP	Front lh seat (SE,GTS,SLS)
09409-10308-000	CLIP	Front lh seat (SE,GTS,SLS)
37390-57L00-5PK	SWITCH,PWR SEAT MAIN,L	Front lh seat (SE,GTS,SLS)
37390-57L00-V6N	SWITCH,PWR SEAT MAIN,L	Front lh seat (SE,GTS,SLS)
37396-57L00-5PK	SWITCH,LUMBAR SUPPORT,L	Front lh seat (SE,GTS,SLS)
37396-57L00-V6N	Switch, lumbar support lh - Beige	Front lh seat (SE,GTS,SLS)
85102-60L40-GNF	Cushion assy, front lh - Black	Front lh seat (SE,GTS,SLS)
85102-60L40-GNH	CUSHION ASSY,FR,L	Front lh seat (SE,GTS,SLS)
85102-60L40-JUM	CUSHION ASSY,FR,L	Front lh seat (SE,GTS,SLS)
85102-60L41-GNH	Cushion Assy,fr,l	Front lh seat (SE,GTS,SLS)
85102-60L41-JUM	Cushion Assy,fr,l	Front lh seat (SE,GTS,SLS)
85102-60L50-GNK	Cushion assy,fr,l	Front lh seat (SE,GTS,SLS)
85102-60L50-GNM	Cushion assy, front lh - Beige	Front lh seat (SE,GTS,SLS)
85102-60L50-JUT	CUSHION ASSY,FR,L	Front lh seat (SE,GTS,SLS)
85102-60LH0-JUP	CUSHION ASSY,FR,L	Front lh seat (SE,GTS,SLS)
85102-60LH1-JUP	Cushion Assy,fr,l	Front lh seat (SE,GTS,SLS)
85102-60LH1-JUT	Cushion Assy,fr,l	Front lh seat (SE,GTS,SLS)
85222-57L00-000	COVER,FR BACK FRAME,R	Front lh seat (SE,GTS,SLS)
85223-57L00-5PK	COVER,RCLNG INNER,R	Front lh seat (SE,GTS,SLS)
85223-57L00-V6N	COVER,RCLNG INNER,R	Front lh seat (SE,GTS,SLS)
85224-57L00-5PK	COVER,RCLNG INNER,L	Front lh seat (SE,GTS,SLS)
85224-57L00-V6N	COVER,RCLNG INNER,L	Front lh seat (SE,GTS,SLS)
85242-57L00-000	COVER,FR BACK FRAME,L	Front lh seat (SE,GTS,SLS)
85341-63J10-5PK	GUIDE,HEADRESTRAINT	Front lh seat (SE,GTS,SLS)
85341-63J10-V6N	GUIDE,HEADRESTRAINT	Front lh seat (SE,GTS,SLS)
85341-63J12-5PK	Guide,headrestraint	Front lh seat (SE,GTS,SLS)
85341-63J12-V6N	Guide,headrestraint	Front lh seat (SE,GTS,SLS)
85354-59JB1-000	LABEL,SIDE AIRBAG	Front lh seat (SE,GTS,SLS)
85355-57L00-000	HARNESS ASSY,SIDE AIRBAG	Front lh seat (SE,GTS,SLS)
85369-57L00-000	SUPPORT,FR BACK REAR	Front lh seat (SE,GTS,SLS)
85371-57L20-000	HEATER,FR BACK	Front lh seat (SE,GTS,SLS)
85390-57L00-5PK	Board comp,fr back	Front lh seat (SE,GTS,SLS)
85390-57L00-V6N	Board, fr back - Beige	Front lh seat (SE,GTS,SLS)
85390-57L01-5PK	BOARD,FR BACK	Front lh seat (SE,GTS,SLS)
85390-57L01-V6N	BOARD,FR BACK	Front lh seat (SE,GTS,SLS)
85721-60L00-5PK	COVER,FR RECLINING OUTSIDE,LH (BLACK)	Front lh seat (SE,GTS,SLS)
85721-60L00-V6N	COVER,FR RCLNG OUT,L	Front lh seat (SE,GTS,SLS)
85741-57L00-5PK	COVER,FR RCLNG INSIDE,L	Front lh seat (SE,GTS,SLS)
85741-57L00-V6N	COVER,FR RCLNG INSIDE,L	Front lh seat (SE,GTS,SLS)
85803-60L10-000	FRAME ASSY,FR BACK,L	Front lh seat (SE,GTS,SLS)
85840-63J10-5PK	GUIDE,HEADRESTRAINT	Front lh seat (SE,GTS,SLS)
85840-63J10-V6N	GUIDE,HEADRESTRAINT	Front lh seat (SE,GTS,SLS)
85850-57L00-000	MODULE ASSY,SIDE A/B,L	Front lh seat (SE,GTS,SLS)
85860-57L10-000	PAD,FR BACK,L	Front lh seat (SE,GTS,SLS)
85880-57L10-GNF	Trim comp,fr back,l	Front lh seat (SE,GTS,SLS)
85880-57L10-GNH	Trim comp,fr back,l	Front lh seat (SE,GTS,SLS)
85880-57L10-GNK	Trim, fr back, lh - Black	Front lh seat (SE,GTS,SLS)
85880-57L10-GNM	Trim comp,fr back,l	Front lh seat (SE,GTS,SLS)
85880-57L11-GNH	TRIM,FR BACK,L	Front lh seat (SE,GTS,SLS)
85880-57L11-JUM	TRIM,FR BACK,L	Front lh seat (SE,GTS,SLS)
85880-57L12-GNH	Trim,fr Back,l	Front lh seat (SE,GTS,SLS)
85880-57L12-JUM	Trim,fr Back,l	Front lh seat (SE,GTS,SLS)
85880-57LD0-JUP	TRIM,FR BACK,L	Front lh seat (SE,GTS,SLS)
85880-57LD0-JUT	TRIM,FR BACK,L	Front lh seat (SE,GTS,SLS)
85880-57LD1-JUP	Trim,fr Back,l	Front lh seat (SE,GTS,SLS)
85880-57LD1-JUT	Trim,fr Back,l	Front lh seat (SE,GTS,SLS)
86401-57LA0-W3D	HEADRESTRAINT ASSY	Front lh seat (SE,GTS,SLS)
86401-57LA0-W3E	HEADRESTRAINT ASSY	Front lh seat (SE,GTS,SLS)
86401-57LA0-W3K	HEADRESTRAINT ASSY	Front lh seat (SE,GTS,SLS)
86401-57LA0-W3P	Headrestraint assy	Front lh seat (SE,GTS,SLS)
86401-57LR0-W3K	HEADRESTRAINT ASSY	Front lh seat (SE,GTS,SLS)
86401-57LR0-W3P	HEADRESTRAINT ASSY	Front lh seat (SE,GTS,SLS)
86759-60L00-000	HARNESS,POWER SEAT NO.2	Front lh seat (SE,GTS,SLS)
86811-60L00-000	COVER,LOWER RAIL FR END,R	Front lh seat (SE,GTS,SLS)
86812-60L00-000	COVER,LOWER RAIL FR END,L	Front lh seat (SE,GTS,SLS)
86813-60L00-000	COVER,LOWER RAIL RR END,R	Front lh seat (SE,GTS,SLS)
86814-60L00-000	COVER,LOWER RAIL RR END,L	Front lh seat (SE,GTS,SLS)
