| 01550-0830A-000 |
Bolt - Bolt, mount oil seal cover |

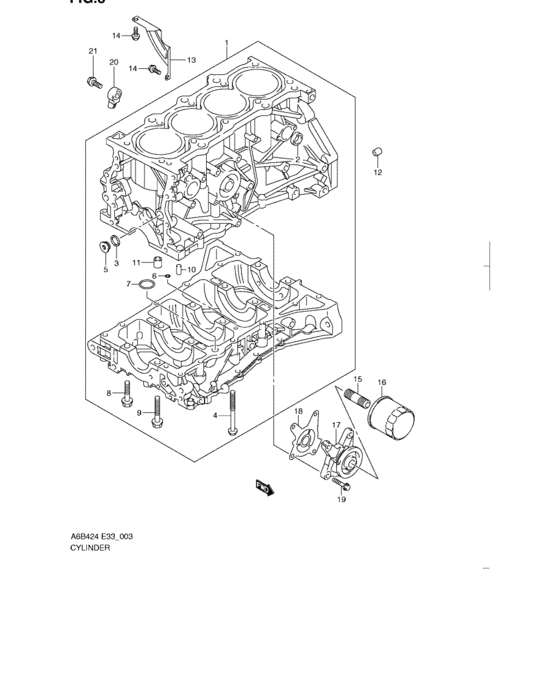

Cylinder (CYLINDER) |
| 01550-0855A-000 |
Bolt - Bolt, gear holder |
Cylinder (CYLINDER) |
| 01550-0880A-000 |
Bolt |
Cylinder (CYLINDER) |
| 02162-0610A-000 |
SCREW |
Cylinder (CYLINDER) |
| 04211-09109-000 |
PIN - Knock pin |
Cylinder (CYLINDER) |
| 04211-13189-000 |
PIN |
Cylinder (CYLINDER) |
| 09202-08004-000 |
PIN(8X23) |
Cylinder (CYLINDER) |
| 09241-30010-000 |
PLUG |
Cylinder (CYLINDER) |
| 09248-18011-000 |
PLUG(18X8) - Plug, oil gallery |
Cylinder (CYLINDER) |
| 09280-10016-000 |
O RING(D:1.9,ID:9.8) |
Cylinder (CYLINDER) |
| 09280-22020-000 |
O RING(D:2.4,ID:21.8) - O ring (d:2.4,id:21.8) |
Cylinder (CYLINDER) |
| 11200-78K02-X12 |
BLOCK ASSY, CYLINDER J24B |
Cylinder (CYLINDER) |
| 11200-78K30-000 |
Block assy,cylinder |
Cylinder (CYLINDER) |
| 11216-77E00-000 |
GASKET,M18 PLUG |
Cylinder (CYLINDER) |
| 11241-69G01-000 |
STAND,OIL FILTER |
Cylinder (CYLINDER) |
| 11241-69G02-000 |
STAND,OIL FILTER |
Cylinder (CYLINDER) |
| 11261-78K00-000 |
BOLT,CRANKCASE |
Cylinder (CYLINDER) |
| 11321-54L00-000 |
PLATE,CLUTCH HSG LOWER |
Cylinder (CYLINDER) |
| 11321-54L10-000 |
PLATE,CLUTCH HSG LOWER |
Cylinder (CYLINDER) |
| 16510-61A30-000 |
Filter assy,oil |
Cylinder (CYLINDER) |
| 16510-61A32-000 |
OIL FILTER, WAKO |
Cylinder (CYLINDER) |
| 16531-54L00-000 |
CASE,OIL FILTER ADAPTER |
Cylinder (CYLINDER) |
| 16539-54L00-000 |
GASKET,OIL ADAPTER CASE |
Cylinder (CYLINDER) |
| 18640-57L00-000 |
SENSOR ASSY,KNOCK |
Cylinder (CYLINDER) |
