A5B310

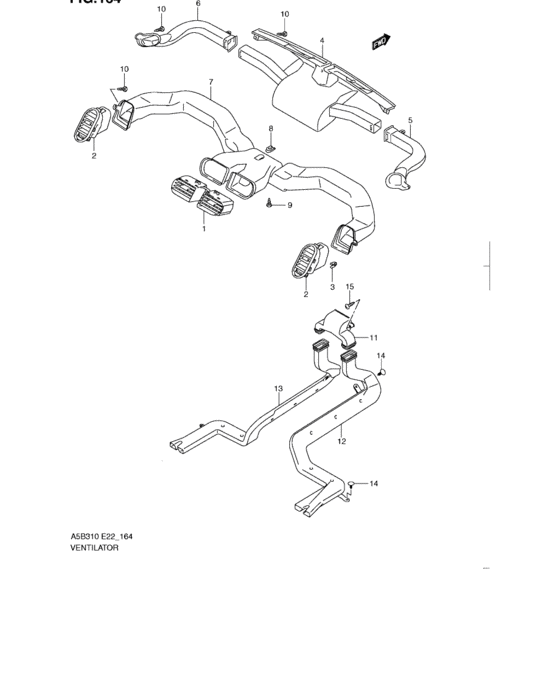

Ventilator (VENTILATOR) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-51K00-S1S | LOUVER,CTR VENT - Gray |
| 2 | 73630-51K00-S1S | Louver, side vent - Gray |
| 2 | 73630-51K00-BWL | Louver, side vent - Gray |
| 3 | 09409-08342-000 | CLIP |
| 4 | 73661-51K00-000 | NOZZLE,DFR |
| 5 | 73681-51K00-000 | DUCT,DEMISTER DRVR |
| 6 | 73691-51K00-000 | DUCT,DEMISTER ASST |
| 7 | 74620-51K00-000 | DUCT,VENT |
| 8 | 09148-05045-000 | NUT |
| 9 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 10 | 03541-0516A-000 | SCREW |
| 11 | 74651-51K00-000 | Duct, rear center |
| 12 | 74652-51K00-000 | Duct, rear rh |
| 13 | 74653-51K00-000 | Duct, rear lh |
| 14 | 09409-06318-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Ventilator (VENTILATOR) |
| 03541-0516A-000 | SCREW | Ventilator (VENTILATOR) |
| 09148-05045-000 | NUT | Ventilator (VENTILATOR) |
| 09409-06318-000 | CLIP | Ventilator (VENTILATOR) |
| 09409-08342-000 | CLIP | Ventilator (VENTILATOR) |
| 73610-51K00-S1S | LOUVER,CTR VENT - Gray | Ventilator (VENTILATOR) |
| 73630-51K00-BWL | Louver, side vent - Gray | Ventilator (VENTILATOR) |
| 73630-51K00-S1S | Louver, side vent - Gray | Ventilator (VENTILATOR) |
| 73661-51K00-000 | NOZZLE,DFR | Ventilator (VENTILATOR) |
| 73681-51K00-000 | DUCT,DEMISTER DRVR | Ventilator (VENTILATOR) |
| 73691-51K00-000 | DUCT,DEMISTER ASST | Ventilator (VENTILATOR) |
| 74620-51K00-000 | DUCT,VENT | Ventilator (VENTILATOR) |
| 74651-51K00-000 | Duct, rear center | Ventilator (VENTILATOR) |
| 74652-51K00-000 | Duct, rear rh | Ventilator (VENTILATOR) |
| 74653-51K00-000 | Duct, rear lh | Ventilator (VENTILATOR) |
