Search › Model › A5B310
A5B310

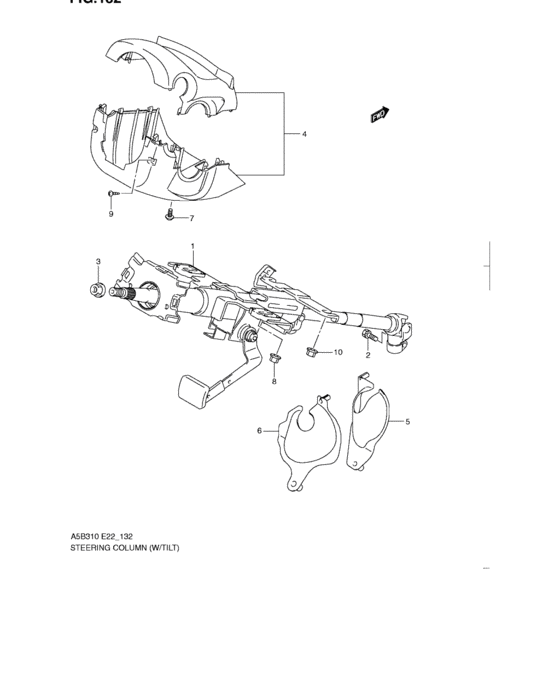

Steering column (W/TILT) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 48200-51K10-000 | COLUMN ASSY,COLPS STRG |
| 2 | 09117-08053-000 | BOLT(8X30) |
| 3 | 08316-1012A-000 | NUT |
| 4 | 48400-51K00-S1S | COVER ASSY,STRG COLUMN - Gray |
| 5 | 48481-72K50-000 | Cover, steering joint |
| 6 | 48481-72K00-000 | Cover, steering joint |
| 7 | 09136-05030-000 | SCREW(5X12) |
| 8 | 09159-08135-000 | NUT |
| 9 | 03211-0512B-000 | SCREW |
| 10 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| OEM | Part name | Category |
|---|---|---|
| 03211-0512B-000 | SCREW | Steering column (W/TILT) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Steering column (W/TILT) |
| 08316-1012A-000 | NUT | Steering column (W/TILT) |
| 09117-08053-000 | BOLT(8X30) | Steering column (W/TILT) |
| 09136-05030-000 | SCREW(5X12) | Steering column (W/TILT) |
| 09159-08135-000 | NUT | Steering column (W/TILT) |
| 48200-51K10-000 | COLUMN ASSY,COLPS STRG | Steering column (W/TILT) |
| 48400-51K00-S1S | COVER ASSY,STRG COLUMN - Gray | Steering column (W/TILT) |
| 48481-72K00-000 | Cover, steering joint | Steering column (W/TILT) |
| 48481-72K50-000 | Cover, steering joint | Steering column (W/TILT) |
