Search › Model › A5B310
A5B310

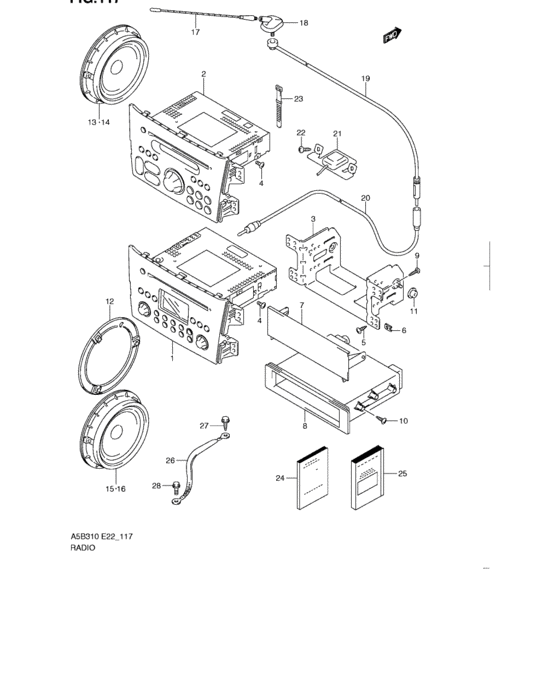

Radio (RADIO) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 39101-51KA0-FUA | Unit assy, navigation |
| 2 | 39101-51K00-EZR | TUNER ASSY - Am/fm,cd,mp3 |
| 3 | 39321-51K00-000 | Bracket, tuner |
| 3 | 39321-51K10-000 | BRACKET,TUNER |
| 4 | 02142-0506A-000 | SCREW |
| 5 | 03541-0516A-000 | SCREW |
| 6 | 09148-05045-000 | NUT |
| 7 | 39161-65J00-000 | COVER,RADIO HOLE |
| 8 | 39182-65J01-000 | POCKET,TUNER |
| 9 | 03241-0512A-000 | SCREW |
| 10 | 03541-0512A-000 | SCREW |
| 11 | 34955-51K00-000 | BUSH,TUNER BRACKET |
| 12 | 39350-63J20-000 | COVER,SPEAKER HOLE |
| 13 | 39102-51K10-000 | Speaker assy, rh |
| 14 | 39102-51K00-000 | Speaker assy, lh |
| 17 | 39251-51K10-000 | ROD,ANTENNA |
| 18 | 39253-86G00-000 | BASE,ANTENNA |
| 19 | 39271-51K00-000 | FEEDER,ANT ROOF |
| 20 | 39270-51K00-000 | FEEDER,ANT I/P |
| 21 | 39950-51KA0-000 | Antenna assy, gps |
| 23 | 09407-14403-000 | CLAMP(L:125) - Clamp, spark plug cap |
| 24 | 39915-62JA5-000 | Cd, navi |
| 25 | 39103-62JC1-000 | MANUAL,NAVI |
| 26 | 39312-78F10-000 | WIRE,NOISE SUPPR |
| 27 | 09115-06005-000 | BOLT(6X16) |
| 28 | 09103-06168-000 | BOLT(6X10) |
| OEM | Part name | Category |
|---|---|---|
| 02142-0506A-000 | SCREW | Radio (RADIO) |
| 03241-0512A-000 | SCREW | Radio (RADIO) |
| 03541-0512A-000 | SCREW | Radio (RADIO) |
| 03541-0516A-000 | SCREW | Radio (RADIO) |
| 09103-06168-000 | BOLT(6X10) | Radio (RADIO) |
| 09115-06005-000 | BOLT(6X16) | Radio (RADIO) |
| 09148-05045-000 | NUT | Radio (RADIO) |
| 09407-14403-000 | CLAMP(L:125) - Clamp, spark plug cap | Radio (RADIO) |
| 34955-51K00-000 | BUSH,TUNER BRACKET | Radio (RADIO) |
| 39101-51K00-EZR | TUNER ASSY - Am/fm,cd,mp3 | Radio (RADIO) |
| 39101-51KA0-FUA | Unit assy, navigation | Radio (RADIO) |
| 39102-51K00-000 | Speaker assy, lh | Radio (RADIO) |
| 39102-51K10-000 | Speaker assy, rh | Radio (RADIO) |
| 39103-62JC1-000 | MANUAL,NAVI | Radio (RADIO) |
| 39161-65J00-000 | COVER,RADIO HOLE | Radio (RADIO) |
| 39182-65J01-000 | POCKET,TUNER | Radio (RADIO) |
| 39251-51K10-000 | ROD,ANTENNA | Radio (RADIO) |
| 39253-86G00-000 | BASE,ANTENNA | Radio (RADIO) |
| 39270-51K00-000 | FEEDER,ANT I/P | Radio (RADIO) |
| 39271-51K00-000 | FEEDER,ANT ROOF | Radio (RADIO) |
| 39312-78F10-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39321-51K00-000 | Bracket, tuner | Radio (RADIO) |
| 39321-51K10-000 | BRACKET,TUNER | Radio (RADIO) |
| 39350-63J20-000 | COVER,SPEAKER HOLE | Radio (RADIO) |
| 39915-62JA5-000 | Cd, navi | Radio (RADIO) |
| 39950-51KA0-000 | Antenna assy, gps | Radio (RADIO) |
