A5B310

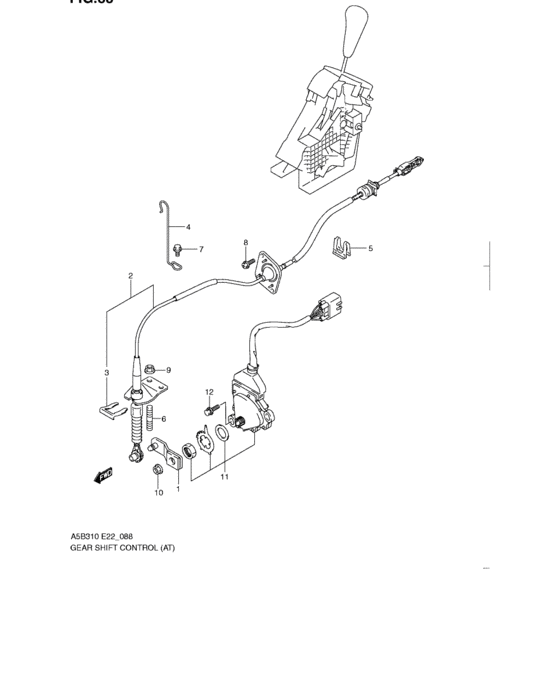

Gear shift control (AT) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 25971-70H10-000 | LEVER,MANUAL SEL |
| 2 | 28210-51K10-000 | CABLE ASSY,SELECT |
| 3 | 09383-19001-000 | E RING - Clip |
| 4 | 28225-79C11-000 | CLAMP,SELECT CABLE |
| 5 | 29365-79A40-000 | CLIP |
| 6 | 09108-08257-000 | BOLT,STUD |
| 7 | 01550-0612A-000 | Bolt |
| 8 | 02162-0620C-000 | SCREW |
| 9 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 10 | 08361-3508A-000 | NUT |
| 11 | 37720-79C10-000 | SWITCH ASSY,SHIFT |
| 12 | 24896-79C10-000 | BOLT,SHIFT SWITCH |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Gear shift control (AT) |
| 02162-0620C-000 | SCREW | Gear shift control (AT) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Gear shift control (AT) |
| 08361-3508A-000 | NUT | Gear shift control (AT) |
| 09108-08257-000 | BOLT,STUD | Gear shift control (AT) |
| 09383-19001-000 | E RING - Clip | Gear shift control (AT) |
| 24896-79C10-000 | BOLT,SHIFT SWITCH | Gear shift control (AT) |
| 25971-70H10-000 | LEVER,MANUAL SEL | Gear shift control (AT) |
| 28210-51K10-000 | CABLE ASSY,SELECT | Gear shift control (AT) |
| 28225-79C11-000 | CLAMP,SELECT CABLE | Gear shift control (AT) |
| 29365-79A40-000 | CLIP | Gear shift control (AT) |
| 37720-79C10-000 | SWITCH ASSY,SHIFT | Gear shift control (AT) |
