Search › Model › A5B310

A5B310

Suzuki SPLASH · 3,419 parts · 208 categories

3,419 items

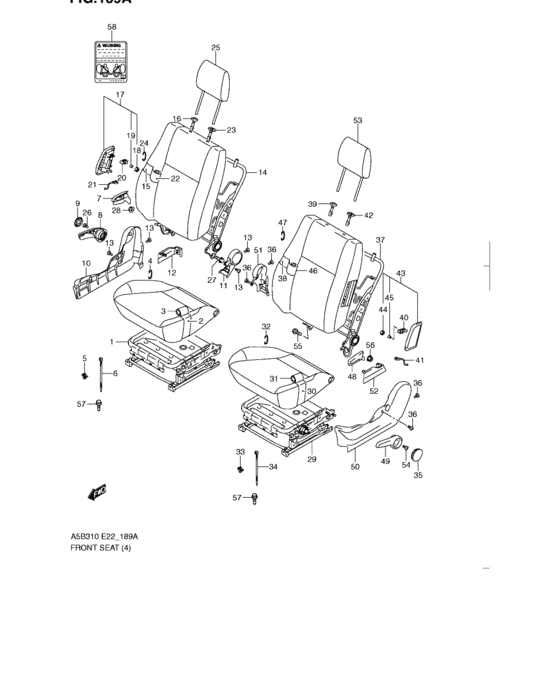

Front seat (GL,GLS:RHD) 67

#	OEM	Part name
1	85103-51K21-000	FRAME ASSY,FR CUSH,R
2	85160-51K00-000	PAD,FR CUSHION,R
3	85180-51K20-EVW	Trim, fr cush rh - Gray
3	85180-51K20-EVZ	Trim, fr cush rh - Blue
3	85180-51K20-FAN	Trim, fr cush rh - Turquoise
3	85180-51K20-FAR	Trim, fr cush rh - Black
4	09387-19001-000	RING
5	85136-51K00-000	CLAMP,NO.3
6	85137-51K00-000	CLAMP
7	85211-65J00-S1S	Knob,rclng,r
7	85211-65JA0-S1S	KNOB,RCLNG,R
8	85213-65J00-S1S	LEVER,SEAT LIFTER
9	85214-63J20-S1S	CAP,LIFTER LEVER
10	85221-51K00-S1S	COVER,RCLNG OUTSIDE,R - Gray
11	85241-51K00-S1S	COVER,RCLNG INSIDE,R - Gray
12	85243-51K20-000	COVER,RR RISER INSIDE,R
13	85295-51K00-000	SCREW,RECLINING COVER
14	85303-51K00-000	FRAME ASSY,FR BACK,R
15	85360-62JA0-000	PAD,FR BACK,R
16	85341-63J10-P4Z	GUIDE,HEADRESTRAINT
16	85341-63J11-P4Z	GUIDE,HEADRESTRAINT
16	85341-63J12-P4Z	Guide,headrestraint
17	85350-51K00-S1S	Module assy, side air bag rh - Gray
17	85350-51K01-S1S	MODULE ASSY,SIDE A/B,R
18	85352-62J00-000	NUT,SIDE AIRBAG
19	85353-62J00-000	SLEEVE,SIDE AIRBAG
20	85351-62J00-000	FASTENER,SIDE AIR BAG MTG
21	85355-51K00-000	HARNESS ASSY,SIDE AIRBAG
22	85380-51KA0-EVW	Trim, fr back rh - Gray
22	85380-51KA0-EVZ	Trim, fr back rh - Blue
22	85380-51KA0-FAN	Trim, fr back rh - Turquoise
22	85380-51KA0-FAR	Trim, fr back rh - Black
23	85840-63J10-P4Z	GUIDE,HEADRESTRAINT
23	85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT
23	85840-63J12-P4Z	Guide Comp,headrestraint
25	86401-62J00-V2M	HEADRESTRAINT ASSY - Charcoal
26	09132-05043-000	SCREW(5X10)
27	01550-1016A-000	Bolt - Plug, oil gallery
28	08316-1010A-000	NUT - Nut, kick starter
29	85603-51K21-000	FRAME ASSY,FR CUSH,L
30	85660-51K00-000	PAD,FR CUSHION,L
31	85680-51K20-EVW	Trim, fr cush lh - Gray
31	85680-51K20-EVZ	Trim, fr cush lh - Blue
31	85680-51K20-FAN	Trim, fr cush lh - Turquoise
31	85680-51K20-FAR	Trim, fr cush lh - Black
37	85803-51K00-000	FRAME ASSY,FR BACK,L
38	85860-62JA0-000	PAD,FR BACK,L
41	85355-62J00-000	HARNESS ASSY,SIDE AIRBAG
43	85850-51K00-S1S	Module assy, side air bag lh - Gray
43	85850-51K01-S1S	MODULE ASSY,SIDE A/B,L
46	85880-51KA0-EVW	Trim, fr back lh - Gray
46	85880-51KA0-EVZ	Trim, fr back lh - Blue
46	85880-51KA0-FAN	Trim, fr back lh - Turquoise
46	85880-51KA0-FAR	Trim, fr back lh - Black
46	85880-51KE0-EVW	Trim, fr back lh - Gray
46	85880-51KE0-EVZ	Trim, fr back lh - Blue
46	85880-51KE0-FAN	Trim, fr back lh - Turquoise
46	85880-51KE0-FAR	Trim, fr back lh - Black
48	85711-65J00-S1S	Knob,rclng,l
48	85711-65JA0-S1S	KNOB,RCLNG,L
49	85713-65J00-S1S	LEVER,SEAT LIFTER,L
50	85721-51K00-S1S	COVER,RCLNG OUTSIDE,L - Gray
51	85741-51K00-S1S	COVER,RCLNG INSIDE,L - Gray
52	85743-51K20-000	COVER,RR RISER INSIDE,L
57	09119-08097-000	BOLT(8X25)
58	85354-59JC1-000	LABEL,SIDE AIRBAG
58	85354-59JD0-000	Label, side air bag - Gray

OEM	Part name	Category
01550-1016A-000	Bolt - Plug, oil gallery	Front seat (GL,GLS:RHD)
08316-1010A-000	NUT - Nut, kick starter	Front seat (GL,GLS:RHD)
09119-08097-000	BOLT(8X25)	Front seat (GL,GLS:RHD)
09132-05043-000	SCREW(5X10)	Front seat (GL,GLS:RHD)
09387-19001-000	RING	Front seat (GL,GLS:RHD)
85103-51K21-000	FRAME ASSY,FR CUSH,R	Front seat (GL,GLS:RHD)
85136-51K00-000	CLAMP,NO.3	Front seat (GL,GLS:RHD)
85137-51K00-000	CLAMP	Front seat (GL,GLS:RHD)
85160-51K00-000	PAD,FR CUSHION,R	Front seat (GL,GLS:RHD)
85180-51K20-EVW	Trim, fr cush rh - Gray	Front seat (GL,GLS:RHD)
85180-51K20-EVZ	Trim, fr cush rh - Blue	Front seat (GL,GLS:RHD)
85180-51K20-FAN	Trim, fr cush rh - Turquoise	Front seat (GL,GLS:RHD)
85180-51K20-FAR	Trim, fr cush rh - Black	Front seat (GL,GLS:RHD)
85211-65J00-S1S	Knob,rclng,r	Front seat (GL,GLS:RHD)
85211-65JA0-S1S	KNOB,RCLNG,R	Front seat (GL,GLS:RHD)
85213-65J00-S1S	LEVER,SEAT LIFTER	Front seat (GL,GLS:RHD)
85214-63J20-S1S	CAP,LIFTER LEVER	Front seat (GL,GLS:RHD)
85221-51K00-S1S	COVER,RCLNG OUTSIDE,R - Gray	Front seat (GL,GLS:RHD)
85241-51K00-S1S	COVER,RCLNG INSIDE,R - Gray	Front seat (GL,GLS:RHD)
85243-51K20-000	COVER,RR RISER INSIDE,R	Front seat (GL,GLS:RHD)
85295-51K00-000	SCREW,RECLINING COVER	Front seat (GL,GLS:RHD)
85303-51K00-000	FRAME ASSY,FR BACK,R	Front seat (GL,GLS:RHD)
85341-63J10-P4Z	GUIDE,HEADRESTRAINT	Front seat (GL,GLS:RHD)
85341-63J11-P4Z	GUIDE,HEADRESTRAINT	Front seat (GL,GLS:RHD)
85341-63J12-P4Z	Guide,headrestraint	Front seat (GL,GLS:RHD)
85350-51K00-S1S	Module assy, side air bag rh - Gray	Front seat (GL,GLS:RHD)
85350-51K01-S1S	MODULE ASSY,SIDE A/B,R	Front seat (GL,GLS:RHD)
85351-62J00-000	FASTENER,SIDE AIR BAG MTG	Front seat (GL,GLS:RHD)
85352-62J00-000	NUT,SIDE AIRBAG	Front seat (GL,GLS:RHD)
85353-62J00-000	SLEEVE,SIDE AIRBAG	Front seat (GL,GLS:RHD)
85354-59JC1-000	LABEL,SIDE AIRBAG	Front seat (GL,GLS:RHD)
85354-59JD0-000	Label, side air bag - Gray	Front seat (GL,GLS:RHD)
85355-51K00-000	HARNESS ASSY,SIDE AIRBAG	Front seat (GL,GLS:RHD)
85355-62J00-000	HARNESS ASSY,SIDE AIRBAG	Front seat (GL,GLS:RHD)
85360-62JA0-000	PAD,FR BACK,R	Front seat (GL,GLS:RHD)
85380-51KA0-EVW	Trim, fr back rh - Gray	Front seat (GL,GLS:RHD)
85380-51KA0-EVZ	Trim, fr back rh - Blue	Front seat (GL,GLS:RHD)
85380-51KA0-FAN	Trim, fr back rh - Turquoise	Front seat (GL,GLS:RHD)
85380-51KA0-FAR	Trim, fr back rh - Black	Front seat (GL,GLS:RHD)
85603-51K21-000	FRAME ASSY,FR CUSH,L	Front seat (GL,GLS:RHD)
85660-51K00-000	PAD,FR CUSHION,L	Front seat (GL,GLS:RHD)
85680-51K20-EVW	Trim, fr cush lh - Gray	Front seat (GL,GLS:RHD)
85680-51K20-EVZ	Trim, fr cush lh - Blue	Front seat (GL,GLS:RHD)
85680-51K20-FAN	Trim, fr cush lh - Turquoise	Front seat (GL,GLS:RHD)
85680-51K20-FAR	Trim, fr cush lh - Black	Front seat (GL,GLS:RHD)
85711-65J00-S1S	Knob,rclng,l	Front seat (GL,GLS:RHD)
85711-65JA0-S1S	KNOB,RCLNG,L	Front seat (GL,GLS:RHD)
85713-65J00-S1S	LEVER,SEAT LIFTER,L	Front seat (GL,GLS:RHD)
85721-51K00-S1S	COVER,RCLNG OUTSIDE,L - Gray	Front seat (GL,GLS:RHD)
85741-51K00-S1S	COVER,RCLNG INSIDE,L - Gray	Front seat (GL,GLS:RHD)
85743-51K20-000	COVER,RR RISER INSIDE,L	Front seat (GL,GLS:RHD)
85803-51K00-000	FRAME ASSY,FR BACK,L	Front seat (GL,GLS:RHD)
85840-63J10-P4Z	GUIDE,HEADRESTRAINT	Front seat (GL,GLS:RHD)
85840-63J11-P4Z	GUIDE COMP,HEADRESTRAINT	Front seat (GL,GLS:RHD)
85840-63J12-P4Z	Guide Comp,headrestraint	Front seat (GL,GLS:RHD)
85850-51K00-S1S	Module assy, side air bag lh - Gray	Front seat (GL,GLS:RHD)
85850-51K01-S1S	MODULE ASSY,SIDE A/B,L	Front seat (GL,GLS:RHD)
85860-62JA0-000	PAD,FR BACK,L	Front seat (GL,GLS:RHD)
85880-51KA0-EVW	Trim, fr back lh - Gray	Front seat (GL,GLS:RHD)
85880-51KA0-EVZ	Trim, fr back lh - Blue	Front seat (GL,GLS:RHD)
85880-51KA0-FAN	Trim, fr back lh - Turquoise	Front seat (GL,GLS:RHD)
85880-51KA0-FAR	Trim, fr back lh - Black	Front seat (GL,GLS:RHD)
85880-51KE0-EVW	Trim, fr back lh - Gray	Front seat (GL,GLS:RHD)
85880-51KE0-EVZ	Trim, fr back lh - Blue	Front seat (GL,GLS:RHD)
85880-51KE0-FAN	Trim, fr back lh - Turquoise	Front seat (GL,GLS:RHD)
85880-51KE0-FAR	Trim, fr back lh - Black	Front seat (GL,GLS:RHD)
86401-62J00-V2M	HEADRESTRAINT ASSY - Charcoal	Front seat (GL,GLS:RHD)
