A5B310

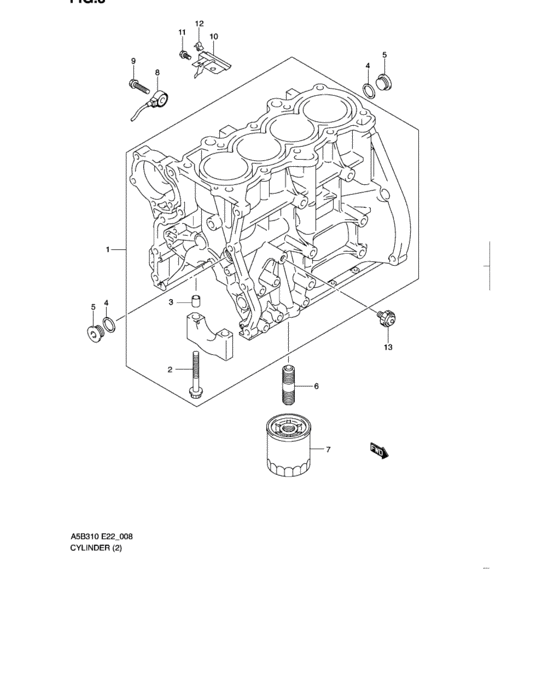

Cylinder (A5B412) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 11200-73K00-000 | Block assy,cylinder |
| 1 | 11200-73K10-000 | Block assy,cylinder |
| 2 | 11261-69J00-000 | Bolt,crank bearing cap |
| 2 | 11261-69J01-000 | BOLT,CRANK BEARING CAP |
| 3 | 04211-13189-000 | PIN |
| 4 | 11216-77E00-000 | GASKET,M18 PLUG |
| 5 | 09248-18011-000 | PLUG(18X8) - Plug, oil gallery |
| 6 | 11241-69G01-000 | STAND,OIL FILTER |
| 6 | 11241-69G02-000 | STAND,OIL FILTER |
| 7 | 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil |
| 8 | 18640-73KA0-000 | SENSOR ASSY,KNOCK |
| 9 | 01550-0835A-000 | Bolt |
| 10 | 18645-73KA0-000 | BRACKET,KNOCK SENSOR |
| 11 | 01550-0612A-000 | Bolt |
| 12 | 09403-06412-000 | CLAMP |
| 13 | 37820-80G01-000 | Switch assy,oil press |
| 13 | 37820-80GP0-000 | SWITCH ASSY,OIL PRESSURE |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Cylinder (A5B412) |
| 01550-0835A-000 | Bolt | Cylinder (A5B412) |
| 04211-13189-000 | PIN | Cylinder (A5B412) |
| 09248-18011-000 | PLUG(18X8) - Plug, oil gallery | Cylinder (A5B412) |
| 09403-06412-000 | CLAMP | Cylinder (A5B412) |
| 11200-73K00-000 | Block assy,cylinder | Cylinder (A5B412) |
| 11200-73K10-000 | Block assy,cylinder | Cylinder (A5B412) |
| 11216-77E00-000 | GASKET,M18 PLUG | Cylinder (A5B412) |
| 11241-69G01-000 | STAND,OIL FILTER | Cylinder (A5B412) |
| 11241-69G02-000 | STAND,OIL FILTER | Cylinder (A5B412) |
| 11261-69J00-000 | Bolt,crank bearing cap | Cylinder (A5B412) |
| 11261-69J01-000 | BOLT,CRANK BEARING CAP | Cylinder (A5B412) |
| 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil | Cylinder (A5B412) |
| 18640-73KA0-000 | SENSOR ASSY,KNOCK | Cylinder (A5B412) |
| 18645-73KA0-000 | BRACKET,KNOCK SENSOR | Cylinder (A5B412) |
| 37820-80G01-000 | Switch assy,oil press | Cylinder (A5B412) |
| 37820-80GP0-000 | SWITCH ASSY,OIL PRESSURE | Cylinder (A5B412) |
