Search › Model › A5B310
A5B310

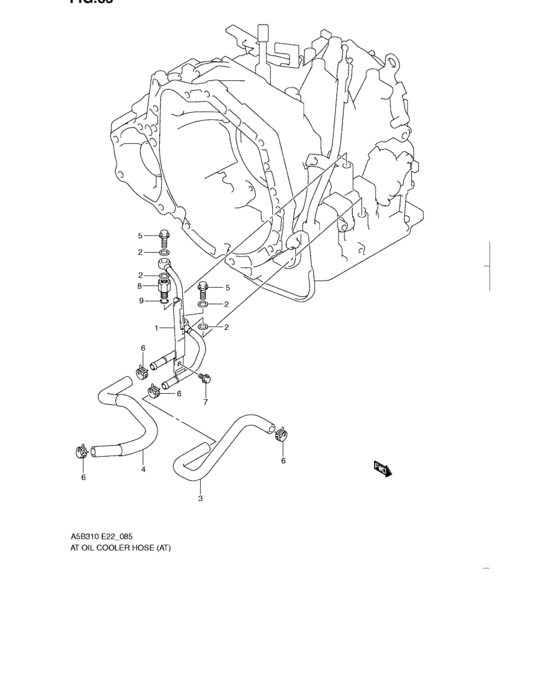

At oil cooler hose (AT) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 22910-51K10-000 | PIPE,OIL COOLER |
| 2 | 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT |
| 3 | 22931-51K10-000 | HOSE,OIL COOLER OUTLET |
| 4 | 22932-51K10-000 | HOSE,OIL COOLER INLET |
| 5 | 09360-10055-000 | UNION - Bolt, oil pipe union |
| 6 | 09401-15410-000 | CLIP |
| 7 | 01550-0612A-000 | Bolt |
| 8 | 24743-55G10-000 | UNION,OIL PIPE |
| 9 | 29737-57B00-000 | O-RING,OIL PIPE |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | At oil cooler hose (AT) |
| 09360-10055-000 | UNION - Bolt, oil pipe union | At oil cooler hose (AT) |
| 09401-15410-000 | CLIP | At oil cooler hose (AT) |
| 22910-51K10-000 | PIPE,OIL COOLER | At oil cooler hose (AT) |
| 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT | At oil cooler hose (AT) |
| 22931-51K10-000 | HOSE,OIL COOLER OUTLET | At oil cooler hose (AT) |
| 22932-51K10-000 | HOSE,OIL COOLER INLET | At oil cooler hose (AT) |
| 24743-55G10-000 | UNION,OIL PIPE | At oil cooler hose (AT) |
| 29737-57B00-000 | O-RING,OIL PIPE | At oil cooler hose (AT) |
