A5B310

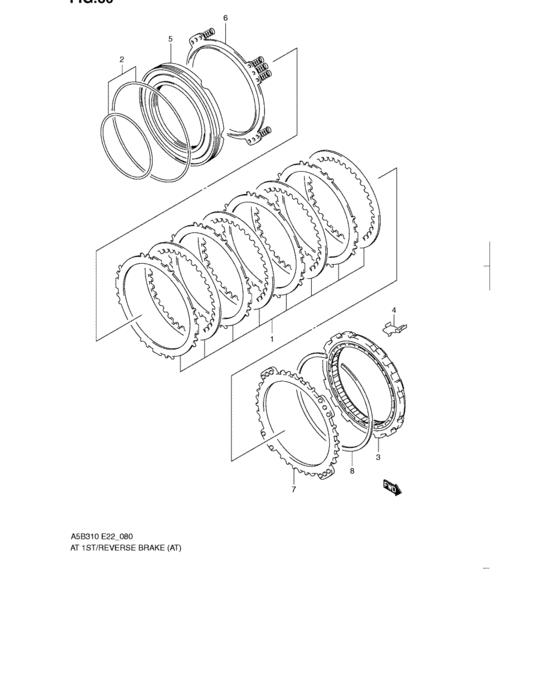

At 1st/reverse brake (AT) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 25842-79CT0-000 | DISC SET,1ST&REV |
| 2 | 26824-79CT0-000 | O-ring set,1st & rev brake |
| 2 | 26824-77MT0-000 | O-RING SET,1ST&REV BRAKE |
| 3 | 26821-55G30-000 | Clutch assy,one way 1st brake |
| 3 | 26821-68K10-000 | CLUTCH ASSY,ONE WAY 1ST BK |
| 4 | 26822-79C10-000 | RETAINER,OUTER RACE |
| 5 | 26823-79C10-000 | PISTON,1ST&REVERSE BRAKE |
| 6 | 26830-79C10-000 | SPRING ASSY,1ST&REVERSE |
| 7 | 26841-79C10-000 | PLATE,1ST&REV BK RTNG |
| 8 | 26844-79C10-000 | RING,1ST&REV BK PLATE |
| OEM | Part name | Category |
|---|---|---|
| 25842-79CT0-000 | DISC SET,1ST&REV | At 1st/reverse brake (AT) |
| 26821-55G30-000 | Clutch assy,one way 1st brake | At 1st/reverse brake (AT) |
| 26821-68K10-000 | CLUTCH ASSY,ONE WAY 1ST BK | At 1st/reverse brake (AT) |
| 26822-79C10-000 | RETAINER,OUTER RACE | At 1st/reverse brake (AT) |
| 26823-79C10-000 | PISTON,1ST&REVERSE BRAKE | At 1st/reverse brake (AT) |
| 26824-77MT0-000 | O-RING SET,1ST&REV BRAKE | At 1st/reverse brake (AT) |
| 26824-79CT0-000 | O-ring set,1st & rev brake | At 1st/reverse brake (AT) |
| 26830-79C10-000 | SPRING ASSY,1ST&REVERSE | At 1st/reverse brake (AT) |
| 26841-79C10-000 | PLATE,1ST&REV BK RTNG | At 1st/reverse brake (AT) |
| 26844-79C10-000 | RING,1ST&REV BK PLATE | At 1st/reverse brake (AT) |
