A5B310

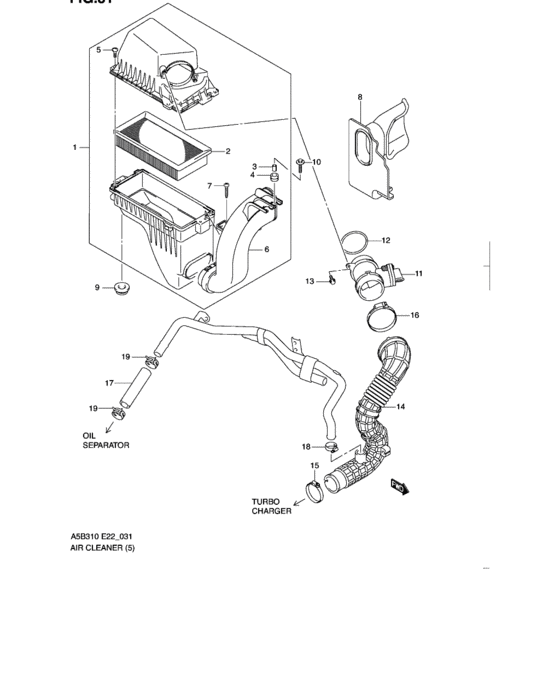

Air cleaner (A5B413D) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-53K01-000 | Cleaner assy, air |
| 2 | 13780-62J51-000 | Element, air cleaner |
| 3 | 13877-83E00-000 | COLLAR |
| 4 | 13878-83E00-000 | GROMMET |
| 5 | 13754-62J50-000 | Bolt |
| 6 | 13765-53K00-000 | Pipe, suction |
| 8 | 13766-53K00-000 | Hose, air clnr suction |
| 9 | 17879-62J50-000 | Mount, radiator |
| 10 | 09116-06185-000 | BOLT(6X30) |
| 11 | 13800-86J00-000 | Sensor assy, maf |
| 12 | 13811-53K00-000 | O ring |
| 13 | 01550-0612A-000 | Bolt |
| 14 | 13881-53K00-000 | Hose, air cleaner outlet |
| 15 | 09402-46511-000 | CLAMP |
| 16 | 09402-70503-000 | CLAMP - Clamp,tank |
| 17 | 11191-84E50-000 | Hose, breather |
| 18 | 09402-28511-000 | CLAMP |
| 19 | 09401-22405-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Air cleaner (A5B413D) |
| 09116-06185-000 | BOLT(6X30) | Air cleaner (A5B413D) |
| 09401-22405-000 | CLIP | Air cleaner (A5B413D) |
| 09402-28511-000 | CLAMP | Air cleaner (A5B413D) |
| 09402-46511-000 | CLAMP | Air cleaner (A5B413D) |
| 09402-70503-000 | CLAMP - Clamp,tank | Air cleaner (A5B413D) |
| 11191-84E50-000 | Hose, breather | Air cleaner (A5B413D) |
| 13700-53K01-000 | Cleaner assy, air | Air cleaner (A5B413D) |
| 13754-62J50-000 | Bolt | Air cleaner (A5B413D) |
| 13765-53K00-000 | Pipe, suction | Air cleaner (A5B413D) |
| 13766-53K00-000 | Hose, air clnr suction | Air cleaner (A5B413D) |
| 13780-62J51-000 | Element, air cleaner | Air cleaner (A5B413D) |
| 13800-86J00-000 | Sensor assy, maf | Air cleaner (A5B413D) |
| 13811-53K00-000 | O ring | Air cleaner (A5B413D) |
| 13877-83E00-000 | COLLAR | Air cleaner (A5B413D) |
| 13878-83E00-000 | GROMMET | Air cleaner (A5B413D) |
| 13881-53K00-000 | Hose, air cleaner outlet | Air cleaner (A5B413D) |
| 17879-62J50-000 | Mount, radiator | Air cleaner (A5B413D) |
