Search › Model › A34
A34

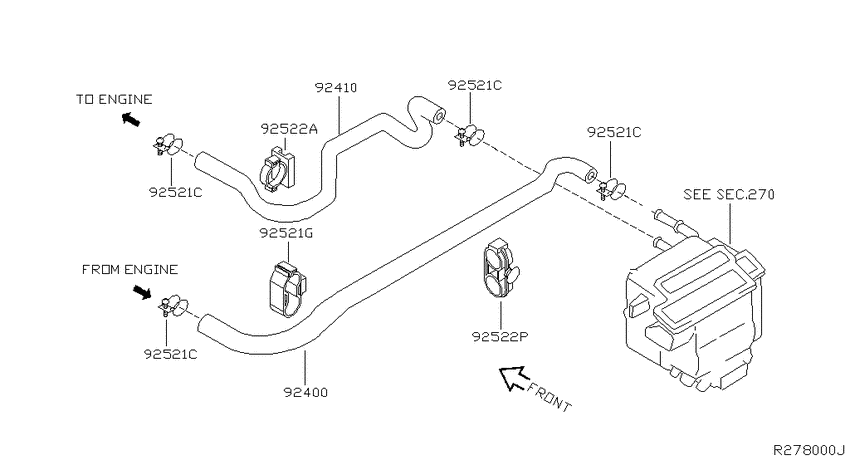

Heater piping (2006-06-01 ~ ; 4S) 6
| # | OEM | Part name |
|---|---|---|
| 92400 | 92400-ZK30A | Hose-heater,inlet |
| 92410 | 92410-ZK30A | Hose-heater,outlet |
| 92521 | 01558-00331 | CLIP |
| 92521 | 92555-7Y000 | Clip |
| 92522 | 92520-3J100 | Clip |
| 92522 | 92555-31U00 | クリツプ |
| OEM | Part name | Category |
|---|---|---|
| 01558-00331 | CLIP | Heater piping (2006-06-01 ~ ; 4S) |
| 92400-ZK30A | Hose-heater,inlet | Heater piping (2006-06-01 ~ ; 4S) |
| 92410-ZK30A | Hose-heater,outlet | Heater piping (2006-06-01 ~ ; 4S) |
| 92520-3J100 | Clip | Heater piping (2006-06-01 ~ ; 4S) |
| 92555-31U00 | クリツプ | Heater piping (2006-06-01 ~ ; 4S) |
| 92555-7Y000 | Clip | Heater piping (2006-06-01 ~ ; 4S) |
