Search › Model › A34
A34

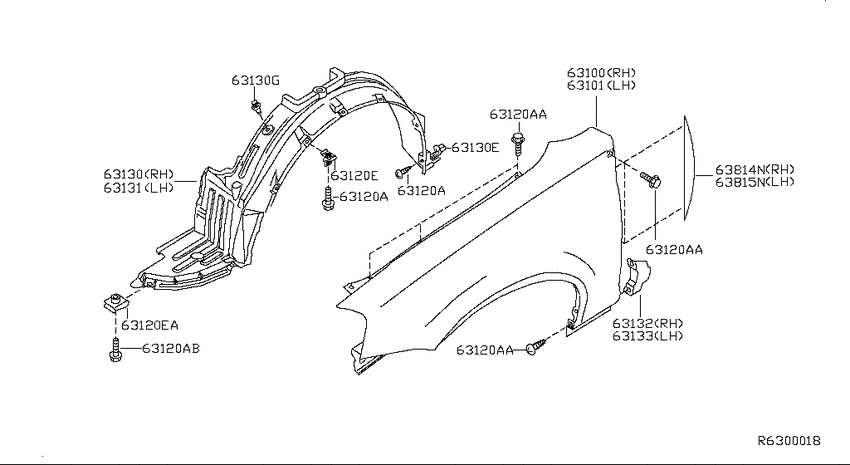

Front fender & fitting (2006-06-01 ~ ; 4S) 10
| # | OEM | Part name |
|---|---|---|
| 63100 | 63112-7Y030 | Fender-Front, Rh |
| 63101 | 63113-7Y030 | Fender-Front, Lh |
| 63120 | 01466-0002U | Screw |
| 63130 | 63842-ZK00A | Protector-Front Fender, Rh |
| 63130 | 01553-05933 | CLIP |
| 63131 | 63843-ZK00A | Protector-Front Fender, Lh |
| 63132 | 63130-7Y030 | Baffle Plate-Front Fender, Rh |
| 63133 | 63131-7Y030 | Baffle Plate-Front Fender, Lh |
| 63814 | 63814-7Y000 | Protector-End, Rh |
| 63815 | 63815-7Y000 | Protector-End, Lh |
| OEM | Part name | Category |
|---|---|---|
| 01466-0002U | Screw | Front fender & fitting (2006-06-01 ~ ; 4S) |
| 01553-05933 | CLIP | Front fender & fitting (2006-06-01 ~ ; 4S) |
| 63112-7Y030 | Fender-Front, Rh | Front fender & fitting (2006-06-01 ~ ; 4S) |
| 63113-7Y030 | Fender-Front, Lh | Front fender & fitting (2006-06-01 ~ ; 4S) |
| 63130-7Y030 | Baffle Plate-Front Fender, Rh | Front fender & fitting (2006-06-01 ~ ; 4S) |
| 63131-7Y030 | Baffle Plate-Front Fender, Lh | Front fender & fitting (2006-06-01 ~ ; 4S) |
| 63814-7Y000 | Protector-End, Rh | Front fender & fitting (2006-06-01 ~ ; 4S) |
| 63815-7Y000 | Protector-End, Lh | Front fender & fitting (2006-06-01 ~ ; 4S) |
| 63842-ZK00A | Protector-Front Fender, Rh | Front fender & fitting (2006-06-01 ~ ; 4S) |
| 63843-ZK00A | Protector-Front Fender, Lh | Front fender & fitting (2006-06-01 ~ ; 4S) |
