Search › Model › A34
A34

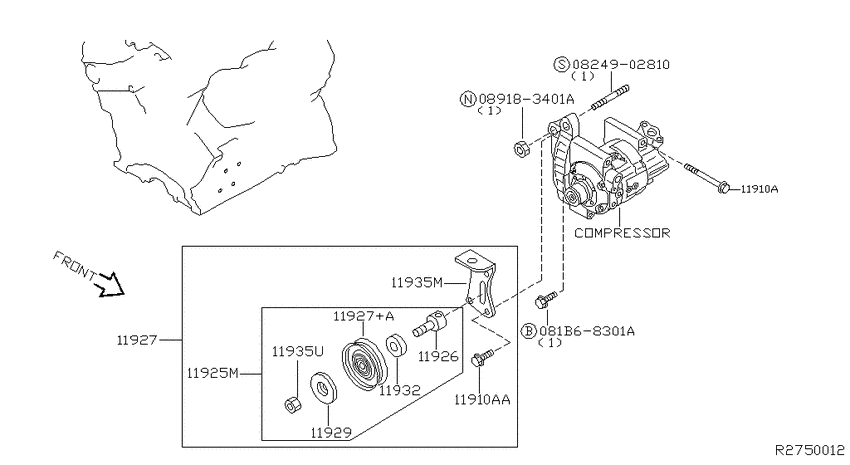

Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) 9
| # | OEM | Part name |
|---|---|---|
| 11910 | 11916-5Y700 | Bolt |
| 11910 | 11916-8J105 | Bolt |
| 11925 | 11925-31U05 | Pulley Assy-Idler, Compressor |
| 11926 | 11928-31U03 | Shaft-Idler Pulley |
| 11927 | 11944-8J10A | Pulley-Idler |
| 11932 | 11932-31U01 | Collar-Idler Pulley |
| 11935 | 11926-8J100 | Bracket-Idler Pulley |
| 11935 | 11934-31U03 | Nut |
| 824902810 | 08249-02810 | スタツド |
| OEM | Part name | Category |
|---|---|---|
| 08249-02810 | スタツド | Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) |
| 11916-5Y700 | Bolt | Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) |
| 11916-8J105 | Bolt | Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) |
| 11925-31U05 | Pulley Assy-Idler, Compressor | Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) |
| 11926-8J100 | Bracket-Idler Pulley | Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) |
| 11928-31U03 | Shaft-Idler Pulley | Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) |
| 11932-31U01 | Collar-Idler Pulley | Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) |
| 11934-31U03 | Nut | Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) |
| 11944-8J10A | Pulley-Idler | Compressor mounting & fitting (2006-06-01 ~ ; VQ35DE) |
