Search › Model › A34

A34

Nissan MAXIMA · 2003 · 2,631 parts · 178 categories

2,631 items

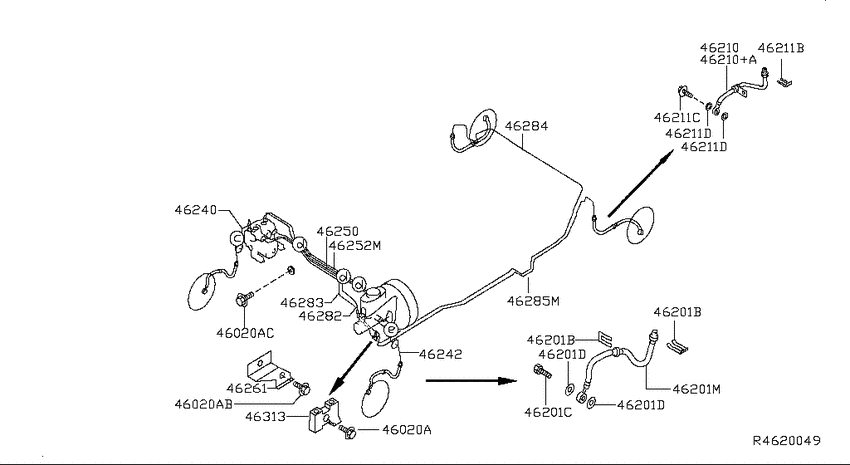

Brake piping & control (2006-06-01 ~ ; PIPING; 4S) 23

#	OEM	Part name
46020	01125-N8021	Bolt
46201	46356-0E000	BOLT-UNION,FRONT BRAKE HOSE
46201	46210-8J005	Hose Assy-Brake, Front
46201	46210-ZB51A	Hose Assy-Brake, Front
46210	46210-8J011	Hose Assy-Brake, Rear
46210	46211-8J011	Hose Assy-Brake, Rear
46240	46240-7Y100	Tube Assy-Brake, Front Rh
46240	46240-ZK40A	Tube Assy-Brake, Front Rh
46242	46242-7Y100	Tube Assy-Brake, Front Lh
46242	46242-ZK40A	Tube Assy-Brake, Front Lh
46250	46250-7Y100	Tube Assy-Brake, Master Cylinder To Front
46250	46250-ZK40A	Tube Assy-Brake, Master Cylinder To Front
46252	46252-7Y100	Tube Assy-Brake, Master Cylinder To Rear
46252	46252-ZK40A	Tube Assy-Brake, Master Cylinder To Rear
46261	46261-5M000	Bracket-Brake Tube
46282	46282-7Y100	Tube Assy-Brake, Rear
46282	46282-ZK40A	Tube Assy-Brake, Rear
46283	46283-7Y100	Tube Assy-Brake, Rear
46283	46283-ZK40A	Tube Assy-Brake, Rear
46284	46284-7Y000	Tube Assy-Brake, Rear
46285	46285-7Y000	Tube Assy-Brake, Rear
46313	46313-40U00	Connector-Brake Tube
46313	46313-EM00A	Connector-Brake Tube

OEM	Part name	Category
01125-N8021	Bolt	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46210-8J005	Hose Assy-Brake, Front	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46210-8J011	Hose Assy-Brake, Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46210-ZB51A	Hose Assy-Brake, Front	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46211-8J011	Hose Assy-Brake, Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46240-7Y100	Tube Assy-Brake, Front Rh	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46240-ZK40A	Tube Assy-Brake, Front Rh	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46242-7Y100	Tube Assy-Brake, Front Lh	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46242-ZK40A	Tube Assy-Brake, Front Lh	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46250-7Y100	Tube Assy-Brake, Master Cylinder To Front	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46250-ZK40A	Tube Assy-Brake, Master Cylinder To Front	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46252-7Y100	Tube Assy-Brake, Master Cylinder To Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46252-ZK40A	Tube Assy-Brake, Master Cylinder To Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46261-5M000	Bracket-Brake Tube	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46282-7Y100	Tube Assy-Brake, Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46282-ZK40A	Tube Assy-Brake, Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46283-7Y100	Tube Assy-Brake, Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46283-ZK40A	Tube Assy-Brake, Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46284-7Y000	Tube Assy-Brake, Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46285-7Y000	Tube Assy-Brake, Rear	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46313-40U00	Connector-Brake Tube	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46313-EM00A	Connector-Brake Tube	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
46356-0E000	BOLT-UNION,FRONT BRAKE HOSE	Brake piping & control (2006-06-01 ~ ; PIPING; 4S)
