Search › Model › A32B

A32B

Nissan MAXIMA · 1994 · 3,385 parts · 218 categories

3,385 items

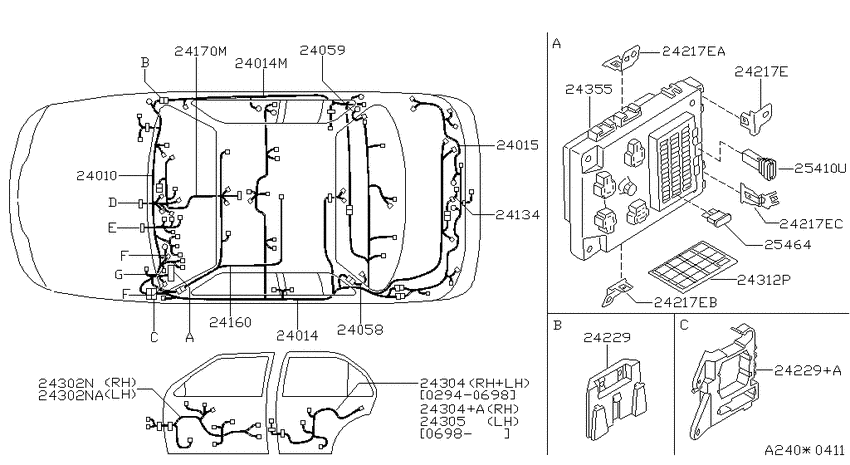

Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S) 56

#	OEM	Part name
24010	24010-0L700	Harness-Main
24010	24010-0L705	Harness-Main
24010	24010-0L760	Harness-Main
24010	24010-0L765	Harness-Main
24010	24010-4L000	Harness-Main
24010	24010-4L002	Harness-Main
24010	24010-4L700	Harness-Main
24010	24010-4L701	Harness-Main
24010	24010-4L702	Harness-Main
24014	24014-0L710	Harness-Body
24014	24014-0L715	Harness-Body
24014	24014-0L760	Harness-Body
24014	24014-0L765	Harness-Body
24014	24014-4L000	Harness-Body
24014	24014-4L001	Harness-Body
24014	24014-4L015	Harness-Body
24014	24014-4L016	Harness-Body
24014	24014-4L700	Harness-Body
24014	24014-4L702	Harness-Body
24014	24014-4L705	Harness-Body
24014	24014-4L707	Harness-Body
24014	08368-6125G	スクリユ-
24014	24017-0L700	Harness-Body
24014	24017-0L760	Harness-Body
24014	24017-4L000	Harness-Body
24015	24015-0L700	Harness-Tail
24015	24015-4L000	Harness-Tail
24015	01436-01501	SCREW
24015	01436-01181	SCREW
24015	01456-00501	SCREW
24058	24058-31U00	Harness-Defogger, Rear
24059	24059-31U00	Harness-Defogger, Earth
24160	24060-51U05	Harness Assy-Room Lamp
24170	24170-0L700	Harness-Air Bag, Room
24170	24170-4L800	Harness-Air Bag, Room
24217	24239-40U00	Bracket-Clip
24217	24239-40U10	Bracket-Clip
24217	24239-38U20	Bracket-Clip
24217	24239-40U05	Bracket-Clip
24229	24354-31U10	Bracket-Junction
24229	24354-40U00	Bracket-Junction
24302	24124-0L700	Harness Assy-Door, Front
24302	24124-0L705	Harness Assy-Door, Front
24302	24124-0L710	Harness Assy-Door, Front
24302	24124-0L715	Harness Assy-Door, Front
24302	24125-0L700	Harness Assy-Door, Front
24302	24125-0L705	Harness Assy-Door, Front
24302	24125-0L710	Harness Assy-Door, Front
24302	24125-0L715	Harness Assy-Door, Front
24304	24126-0L700	Harness-Rear Door, Rh
24304	24126-3L000	Harness-Rear Door, Rh
24305	24127-4L000	Harness-Rear Door, Lh
24312	24313-4L700	Label-Fuse Block
24312	24313-56U00	Label-Fuse Block
24355	24350-4L700	Bracket-Junction
24355	24350-56U00	Bracket-Junction

OEM	Part name	Category
01436-01181	SCREW	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
01436-01501	SCREW	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
01456-00501	SCREW	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
08368-6125G	スクリユ-	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24010-0L700	Harness-Main	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24010-0L705	Harness-Main	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24010-0L760	Harness-Main	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24010-0L765	Harness-Main	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24010-4L000	Harness-Main	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24010-4L002	Harness-Main	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24010-4L700	Harness-Main	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24010-4L701	Harness-Main	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24010-4L702	Harness-Main	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-0L710	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-0L715	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-0L760	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-0L765	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-4L000	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-4L001	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-4L015	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-4L016	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-4L700	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-4L702	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-4L705	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24014-4L707	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24015-0L700	Harness-Tail	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24015-4L000	Harness-Tail	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24017-0L700	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24017-0L760	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24017-4L000	Harness-Body	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24058-31U00	Harness-Defogger, Rear	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24059-31U00	Harness-Defogger, Earth	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24060-51U05	Harness Assy-Room Lamp	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24124-0L700	Harness Assy-Door, Front	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24124-0L705	Harness Assy-Door, Front	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24124-0L710	Harness Assy-Door, Front	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24124-0L715	Harness Assy-Door, Front	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24125-0L700	Harness Assy-Door, Front	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24125-0L705	Harness Assy-Door, Front	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24125-0L710	Harness Assy-Door, Front	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24125-0L715	Harness Assy-Door, Front	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24126-0L700	Harness-Rear Door, Rh	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24126-3L000	Harness-Rear Door, Rh	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24127-4L000	Harness-Rear Door, Lh	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24170-0L700	Harness-Air Bag, Room	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24170-4L800	Harness-Air Bag, Room	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24239-38U20	Bracket-Clip	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24239-40U00	Bracket-Clip	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24239-40U05	Bracket-Clip	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24239-40U10	Bracket-Clip	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24313-4L700	Label-Fuse Block	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24313-56U00	Label-Fuse Block	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24350-4L700	Bracket-Junction	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24350-56U00	Bracket-Junction	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24354-31U10	Bracket-Junction	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
24354-40U00	Bracket-Junction	Wiring (1996-07-01 ~ ; BODY; FED.S +CAL.S)
