A32B

Nissan MAXIMA · 1994 · 3,385 parts · 218 categories

3,385 items

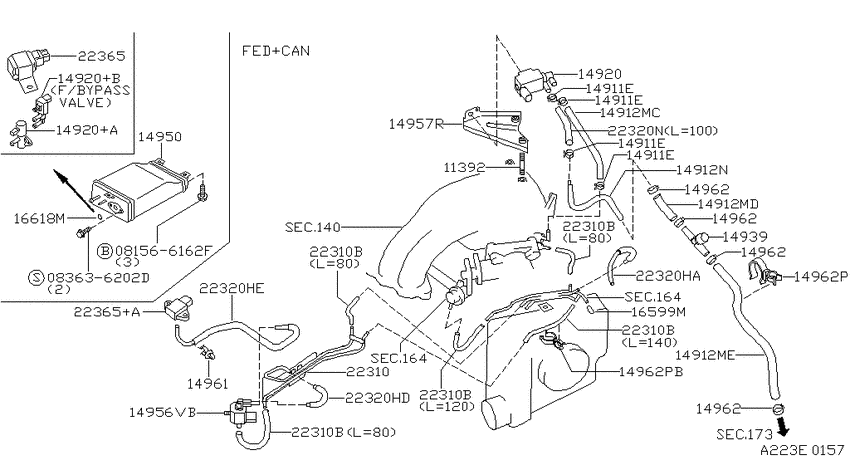

Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE) 61

#	OEM	Part name
11392	11392-31U05	Stud
14911	16439-42L00	Clamp-Hose, A
14911	16439-N2100	Clamp-Hose
14912	14912-40U05	Hose-Fuel Evaporation Control
14912	14912-4L600	Hose-Fuel Evaporation Control
14912	14912-9E008	HOSE-FUEL EVAPORATION CONTROL
14912	14912-2L900	Hose-Fuel Evaporation Control
14912	22310-40U11	Tube-Anti Evaporation Control
14912	22310-40U12	Tube-Anti Evaporation Control
14912	22310-4L610	Tube-Anti Evaporation Control
14920	14930-3M200	Valve Assy-Control
14920	14930-3M201	Valve Assy-Control
14920	14930-40U01	Valve Assy-Control
14920	14930-9E011	VALVE ASSY-CONTROL
14920	14930-9E01A	Valve Assy-Control
14920	14935-54U00	Valve Assy-Control
14920	14935-54U05	Valve assy-control
14920	14935-54U02	Valve Assy-Control
14920	14935-54U0D	Valve assy-control
14920	14933-4L610	Valve Assy-Control
14920	14933-4L61A	Valve assy-control
14920	14933-54U00	Valve Assy-Control
14920	14933-54U0A	Valve assy-control
14939	14939-3S500	Valve Assy-Evapo, Service Port
14950	14950-4L600	Evaporative Emission Canister
14950	14950-4L60A	Evaporative emission canister
14950	14950-56U10	Evaporative Emission Canister
14950	14950-56U15	Evaporative emission canister
14950	14950-56U11	Evaporative Emission Canister
14950	14950-56U16	Evaporative Emission Canister
14957	14957-4L600	Bracket-Solenoid Valve
14961	22316-97E00	CLAMP-HOSE,A
14962	24220-40U01	Clamp-Hose, B
14962	24220-82R00	Clamp-Hose, B
14962	24220-88N00	Clamp-Hose, B
16599	16599-W7000	Cap-Connector
16618	16618-40U00	Seal-O Ring
16618	16618-40U10	Seal-O Ring
22310	22310-2L900	Gallery Assy-Vacuum
22310	22310-2L901	Gallery Assy-Vacuum
22310	22310-4L700	Gallery Assy-Vacuum
22310	22310-54U10	Gallery Assy-Vacuum
22310	22310-54U11	Gallery assy-vacuum
22310	22310-38U10	Gallery Assy-Vacuum
22310	02187-30503	HOSE-VACUUM CONTROL
22310	02187-30703	HOSE-VACUUM CONTROL
22310	02187-30803	HOSE-VACUUM CONTROL
22310	02187-31203	HOSE-VACUUM CONTROL
22310	22310-4L600	Gallery Assy-Vacuum
22320	22320-40U02	Hose-Vacuum Control, B
22320	22320-43U03	Hose-Vacuum Control
22320	22320-54U00	Hose-Vacuum Control
22320	22320-56U10	Hose-Vacuum Control
22365	25085-2L900	Evap Control System Pressure Sensor
22365	25085-54U00	Evap Control System Pressure Sensor
22365	25085-54U01	Evap Control System Pressure Sensor
22365	25085-9E010	EVAP CONTROL SYSTEM PRESSURE SENSOR
22365	22365-2L900	Evap Control System Pressure Sensor
22365	22365-54U15	Evap Control System Pressure Sensor
22365	01436-01061	SCREW
83636202	08363-6202D	スクリユ-,マシン

OEM	Part name	Category
01436-01061	SCREW	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
02187-30503	HOSE-VACUUM CONTROL	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
02187-30703	HOSE-VACUUM CONTROL	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
02187-30803	HOSE-VACUUM CONTROL	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
02187-31203	HOSE-VACUUM CONTROL	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
08363-6202D	スクリユ-,マシン	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
11392-31U05	Stud	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14912-2L900	Hose-Fuel Evaporation Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14912-40U05	Hose-Fuel Evaporation Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14912-4L600	Hose-Fuel Evaporation Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14912-9E008	HOSE-FUEL EVAPORATION CONTROL	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14930-3M200	Valve Assy-Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14930-3M201	Valve Assy-Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14930-40U01	Valve Assy-Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14930-9E011	VALVE ASSY-CONTROL	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14930-9E01A	Valve Assy-Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14933-4L610	Valve Assy-Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14933-4L61A	Valve assy-control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14933-54U00	Valve Assy-Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14933-54U0A	Valve assy-control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14935-54U00	Valve Assy-Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14935-54U02	Valve Assy-Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14935-54U05	Valve assy-control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14935-54U0D	Valve assy-control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14939-3S500	Valve Assy-Evapo, Service Port	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14950-4L600	Evaporative Emission Canister	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14950-4L60A	Evaporative emission canister	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14950-56U10	Evaporative Emission Canister	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14950-56U11	Evaporative Emission Canister	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14950-56U15	Evaporative emission canister	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14950-56U16	Evaporative Emission Canister	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
14957-4L600	Bracket-Solenoid Valve	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
16439-42L00	Clamp-Hose, A	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
16439-N2100	Clamp-Hose	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
16599-W7000	Cap-Connector	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
16618-40U00	Seal-O Ring	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
16618-40U10	Seal-O Ring	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-2L900	Gallery Assy-Vacuum	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-2L901	Gallery Assy-Vacuum	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-38U10	Gallery Assy-Vacuum	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-40U11	Tube-Anti Evaporation Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-40U12	Tube-Anti Evaporation Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-4L600	Gallery Assy-Vacuum	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-4L610	Tube-Anti Evaporation Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-4L700	Gallery Assy-Vacuum	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-54U10	Gallery Assy-Vacuum	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22310-54U11	Gallery assy-vacuum	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22316-97E00	CLAMP-HOSE,A	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22320-40U02	Hose-Vacuum Control, B	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22320-43U03	Hose-Vacuum Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22320-54U00	Hose-Vacuum Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22320-56U10	Hose-Vacuum Control	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22365-2L900	Evap Control System Pressure Sensor	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
22365-54U15	Evap Control System Pressure Sensor	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
24220-40U01	Clamp-Hose, B	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
24220-82R00	Clamp-Hose, B	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
24220-88N00	Clamp-Hose, B	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
25085-2L900	Evap Control System Pressure Sensor	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
25085-54U00	Evap Control System Pressure Sensor	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
25085-54U01	Evap Control System Pressure Sensor	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
25085-9E010	EVAP CONTROL SYSTEM PRESSURE SENSOR	Vacuum piping (1998-06-01 ~ ; FED +CAN; VQ30DE)
