A32B

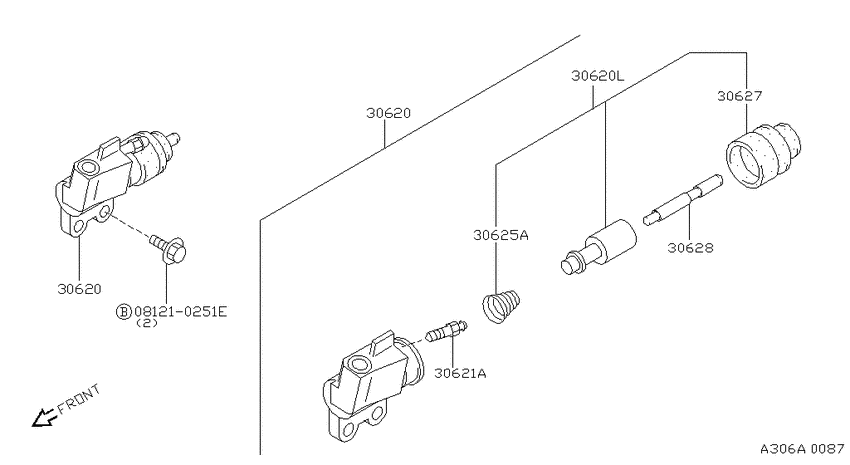

Clutch operating cylinder (1996-07-01 ~ ; VQ30DE.MT) 6
| # | OEM | Part name |
|---|---|---|
| 30620 | 30620-31U20 | Cylinder Assy-Clutch Operating |
| 30621 | 30623-31U10 | Screw-Bleeder |
| 30625 | 30622-69F02 | Spring-Piston |
| 30627 | 30627-16E00 | COVER-DUST |
| 30628 | 30628-50G00 | Rod-Push |
| 30628 | 30628-50G0A | Rod-Push |
| OEM | Part name | Category |
|---|---|---|
| 30620-31U20 | Cylinder Assy-Clutch Operating | Clutch operating cylinder (1996-07-01 ~ ; VQ30DE.MT) |
| 30622-69F02 | Spring-Piston | Clutch operating cylinder (1996-07-01 ~ ; VQ30DE.MT) |
| 30623-31U10 | Screw-Bleeder | Clutch operating cylinder (1996-07-01 ~ ; VQ30DE.MT) |
| 30627-16E00 | COVER-DUST | Clutch operating cylinder (1996-07-01 ~ ; VQ30DE.MT) |
| 30628-50G00 | Rod-Push | Clutch operating cylinder (1996-07-01 ~ ; VQ30DE.MT) |
| 30628-50G0A | Rod-Push | Clutch operating cylinder (1996-07-01 ~ ; VQ30DE.MT) |
