Search › Model › A32B

A32B

Nissan MAXIMA · 1994 · 3,385 parts · 218 categories

3,385 items

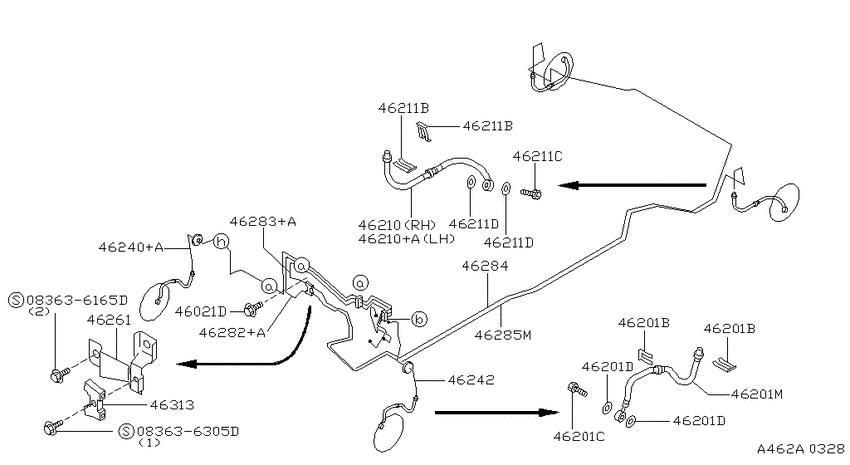

Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S) 22

#	OEM	Part name
46021	08368-6125G	スクリユ-
46201	46206-2J000	Spring-Lock
46201	46356-0E000	BOLT-UNION,FRONT BRAKE HOSE
46201	46210-32U11	Hose Assy-Brake, Front
46201	46210-32U15	Hose Assy-Brake, Front
46210	46210-31U11	Hose Assy-Brake, Rear
46210	46210-31U21	Hose Assy-Brake, Rear
46210	46210-31U12	Hose Assy-Brake, Rear
46210	46210-31U22	Hose Assy-Brake, Rear
46240	46240-40U10	Tube Assy-Brake, Front Rh
46242	46242-0L700	Tube Assy-Brake, Front Lh
46242	46242-40U10	Tube Assy-Brake, Front Lh
46261	46261-40U00	Bracket-Brake Tube
46282	46282-40U10	Tube Assy-Brake, Rear
46283	46283-40U10	Tube Assy-Brake, Rear
46284	46284-1L000	Tube Assy-Brake, Rear
46284	46284-40U00	Tube Assy-Brake, Rear
46285	46285-1L000	Tube Assy-Brake, Rear
46285	46285-40U00	Tube Assy-Brake, Rear
46313	46313-40U00	Connector-Brake Tube
83636165	08363-6165D	Rope & Hook
83636305	08363-6305D	Clip

OEM	Part name	Category
08363-6165D	Rope & Hook	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
08363-6305D	Clip	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
08368-6125G	スクリユ-	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46206-2J000	Spring-Lock	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46210-31U11	Hose Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46210-31U12	Hose Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46210-31U21	Hose Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46210-31U22	Hose Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46210-32U11	Hose Assy-Brake, Front	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46210-32U15	Hose Assy-Brake, Front	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46240-40U10	Tube Assy-Brake, Front Rh	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46242-0L700	Tube Assy-Brake, Front Lh	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46242-40U10	Tube Assy-Brake, Front Lh	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46261-40U00	Bracket-Brake Tube	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46282-40U10	Tube Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46283-40U10	Tube Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46284-1L000	Tube Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46284-40U00	Tube Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46285-1L000	Tube Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46285-40U00	Tube Assy-Brake, Rear	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46313-40U00	Connector-Brake Tube	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
46356-0E000	BOLT-UNION,FRONT BRAKE HOSE	Brake piping & control (1996-07-01 ~ ; STANDARD; FED.S +CAL.S)
