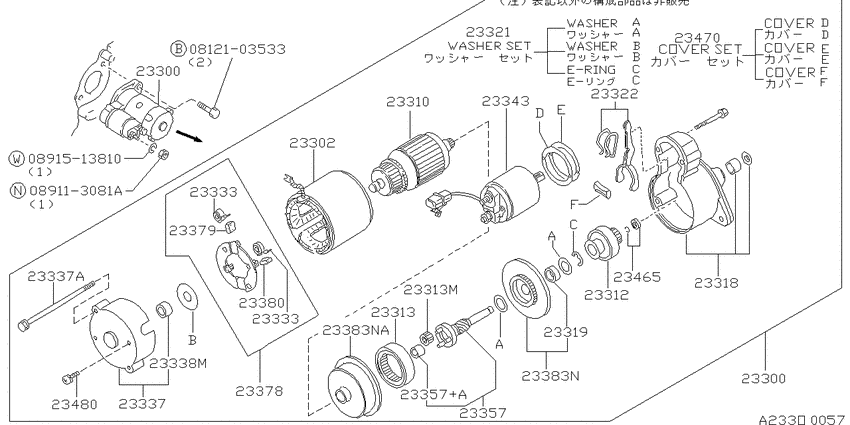

| 08121-03533 |
Bolt-hexagon |
Starter motor (1992-06-01 ~ ; RB25D) |
| 08911-3081A |
Nut-Wiper Arm |
Starter motor (1992-06-01 ~ ; RB25D) |
| 08915-13810 |
ワツシヤ-,スプリング |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23300-08U00 |
Motor Assy-Starter |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23300-20P00 |
Motor Assy-Starter |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23300-20P01 |
Motor Assy-Starter |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23302-42L60 |
Yoke Assy |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23302-50Y02 |
Yoke Assy |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23310-42L60 |
Armature Assy |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23310-50Y02 |
Armature Assy |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23312-42L60 |
Pinion Assy |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23312-50Y01 |
Pinion Assy |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23318-08U00 |
Case Assy-Gear |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23318-20P00 |
Case Assy-Gear |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23319-42L60 |
Metal-Gear Case |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23319-42L61 |
Metal-Gear Case |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23319-97E00 |
METAL-GEAR CASE |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23322-42L60 |
Lever Set-Shift |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23322-97E00 |
LEVER SET-SHIFT |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23333-50Y02 |
Spring-Brush |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23333-M8000 |
Spring-Brush |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23337-20R00 |
Cover Assy-Rear |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23337-50Y02 |
Cover Assy-Rear |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23340-M4900 |
Bolt-Through |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23343-20P00 |
Switch Assy-Magnetic |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23343-20R00 |
Switch Assy-Magnetic |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23357-20P01 |
Shaft-Pinion |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23357-42L60 |
Shaft-Pinion |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23357-50Y01 |
Shaft-Pinion |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23357-97E01 |
SHAFT-PINION |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23361-1P100 |
Gear |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23361-42L60 |
Gear |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23367-1P100 |
Planet Gear |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23367-42L60 |
Planet Gear |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23369-1E400 |
Washer Set-Thrust |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23369-20P01 |
Washer Set-Thrust |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23369-42L60 |
Washer Set-Thrust |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23379-1P100 |
Brush-Minus |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23379-M8001 |
Brush-Minus |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23380-1E400 |
Brush-Plus |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23380-57M60 |
Brush-Plus |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23383-42L60 |
Bracket Assy-Center |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23383-42L61 |
Bracket Assy-Center |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23383-50Y02 |
Bracket Assy-Center |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23383-50Y03 |
Bracket Assy-Center |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23383-52F01 |
Bracket Assy-Center |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23465-80W00 |
Stopper Set-Pinion |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23470-42L60 |
Cover Set-Dust |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23470-50Y02 |
Cover Set-Dust |
Starter motor (1992-06-01 ~ ; RB25D) |
| 23480-M0100 |
Screw Set |
Starter motor (1992-06-01 ~ ; RB25D) |
