| 01121-02851 |
BOLT |

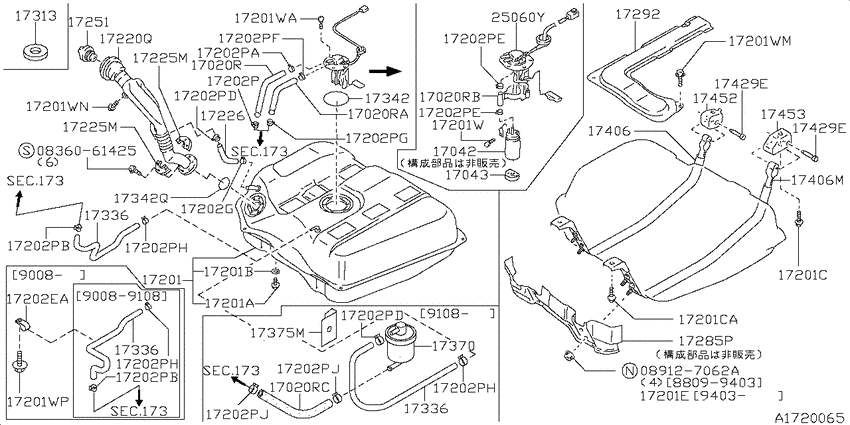

Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01121-03981 |
BOLT |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01125-00062 |
Plug-Drain |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01221-00321 |
NUT |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01352-00431 |
WASHER-SEALING |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01431-00351 |
SCREW |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01466-00151 |
SCREW |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01466-00171 |
SCREW |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01558-00121 |
CLAMP |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01558-00151 |
CLAMP |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01558-00401 |
CLAMP-HOSE |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01995-00081 |
HOSE-FUEL |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 01995-00121 |
HOSE-FUEL |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 02187-51121 |
HOSE-FUEL |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 08360-61425 |
スクリユ-,マシン |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 08740-05039 |
HOSE-FUEL |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 08912-7062A |
ナツト,ヘクサゴン |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 16439-35F15 |
Clamp |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 16439-N2100 |
Clamp-Hose |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 16439-N4710 |
Clamp-Hose |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 16439-V5001 |
Clamp-Hose, A |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17042-5L000 |
Pump Assy-Fuel |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17202-71L62 |
Tank Assy-Fuel |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17220-71L00 |
Tube Assy-Filler |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17232-79900 |
Packing-Drain Plug |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17242-01U00 |
Bracket-Filler Tube |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17251-79910 |
Cap Assy-Filler |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17285-71L01 |
Protector-Fuel Tank |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17292-71L00 |
Protector-Harness |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17336-86L00 |
Hose-Evaporation |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17370-85L00 |
Valve Assy-Check |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17375-85L00 |
Bracket Assy-Fuel Check Valve |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17406-71L00 |
Band Assy-Fuel Tank Mounting |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17407-71L00 |
Band Assy-Fuel Tank, Mounting |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17452-71L00 |
Bracket-Fuel Tank Mounting, Rear |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 17453-71L00 |
Bracket-Fuel Tank Mounting, Rear |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 24211-89901 |
Clip |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
| 25060-71L10 |
Sender Unit-Fuel Gauge |
Fuel tank (1992-06-01 ~ ; RB20E +RB20D +RB20DT +RB25D) |
