3A2

Honda CITY · 1998 · 1,988 parts · 126 categories
3A2 ×

← Back to categories

1,988 items

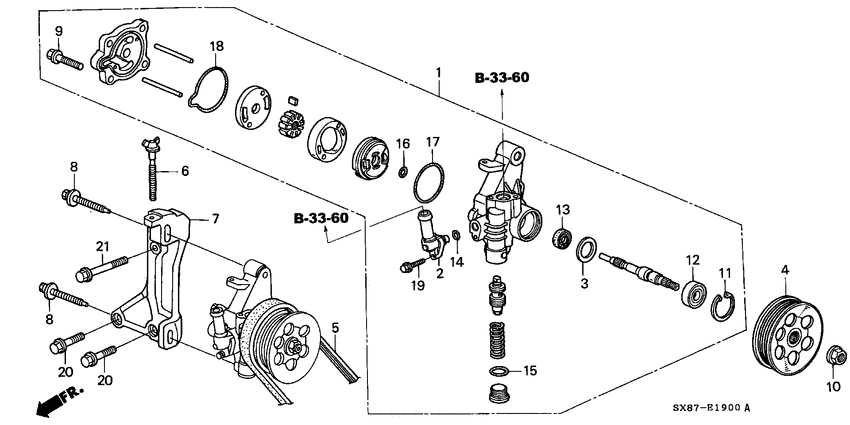

P.s. pump/bracket 20
#OEMPart name
1 56110-P3R-T03 Pump sub assy - POWER STEERING
2 56123-P2A-003 Joint - IN.
3 56167-P2A-003 Spacer - PUMP SEAL
4 56483-P2A-003 Pulley comp - POWER STEERING PUMP
5 56992-P3R-T01 Belt - POWER STEERING PUMP
6 56996-P01-000 Bolt - POWER STEERING PUMP ADJUSTING WING
7 56997-P3R-T00 Bracket - POWER STEERING PUMP
8 90004-P30-000 Bolt - SPECIAL, 8MM
9 90105-S50-003 Bolt - FLANGE, 8X28
10 90305-PAA-A01 Nut - POWER STEERING PULLEY
11 90693-P2A-003 Circlip - INTERNAL, 40MM
12 91048-P2A-003 Bearing - RADIAL BALL, 17X40X12
13 91249-P2A-003 Seal - POWER STEERING PUMP
14 91345-PAA-A01 O-ring - 13.0X1.9
14 91345-PY3-000 O-ring - 13.0X1.9
15 91347-PAA-A01 O-ring - 16.7X1.8
16 91347-P2A-003 O-ring - 15.2X2.4
17 91348-P2A-003 O-ring - 51.0X2.4
18 91349-P2A-003 Seal - POWER STEERING PUMP COVER
19 91350-P8C-A01 Bolt - FLANGE, 6X20
