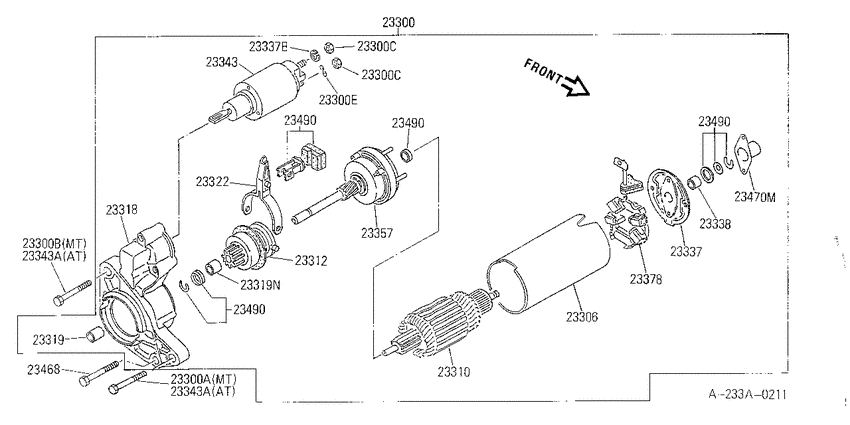

| 23300-80V00 |
Motor Assy-Starter |
Starter motor (1990-05-01 ~ ; ALL) |
| 23300-85V20 |
Motor Assy-Starter |
Starter motor (1990-05-01 ~ ; ALL) |
| 23306-85V00 |
Coil Assy-Field |
Starter motor (1990-05-01 ~ ; ALL) |
| 23310-85V00 |
Armature Assy |
Starter motor (1990-05-01 ~ ; ALL) |
| 23312-85V00 |
Pinion Assy |
Starter motor (1990-05-01 ~ ; ALL) |
| 23312-85V20 |
Pinion Assy |
Starter motor (1990-05-01 ~ ; ALL) |
| 23318-85V00 |
Case Assy-Gear |
Starter motor (1990-05-01 ~ ; ALL) |
| 23318-85V20 |
Case Assy-Gear |
Starter motor (1990-05-01 ~ ; ALL) |
| 23319-85V05 |
Metal-Gear Case |
Starter motor (1990-05-01 ~ ; ALL) |
| 23322-V4911 |
Lever Set-Shift |
Starter motor (1990-05-01 ~ ; ALL) |
| 23337-85V00 |
Cover Assy-Rear |
Starter motor (1990-05-01 ~ ; ALL) |
| 23338-V4910 |
Metal-Rear Cover |
Starter motor (1990-05-01 ~ ; ALL) |
| 23343-85V00 |
Switch Assy-Magnetic |
Starter motor (1990-05-01 ~ ; ALL) |
| 23357-85V00 |
Shaft-Pinion |
Starter motor (1990-05-01 ~ ; ALL) |
| 23357-85V20 |
Shaft-Pinion |
Starter motor (1990-05-01 ~ ; ALL) |
| 23366-V4911 |
Packing Set |
Starter motor (1990-05-01 ~ ; ALL) |
| 23366-V4912 |
Cover-Dust |
Starter motor (1990-05-01 ~ ; ALL) |
| 23378-85V00 |
Holder Assy-Brush |
Starter motor (1990-05-01 ~ ; ALL) |
| 32152-80V00 |
Bolt |
Starter motor (1990-05-01 ~ ; ALL) |
| 32802-85V20 |
Metal-Gear Case |
Starter motor (1990-05-01 ~ ; ALL) |
| 32802-V4900 |
Metal-Gear Case |
Starter motor (1990-05-01 ~ ; ALL) |
