319A

Nissan PASSAT-VOLKSWAGEN · 1989 · 2,583 parts · 146 categories

← Back to categories

2,583 items

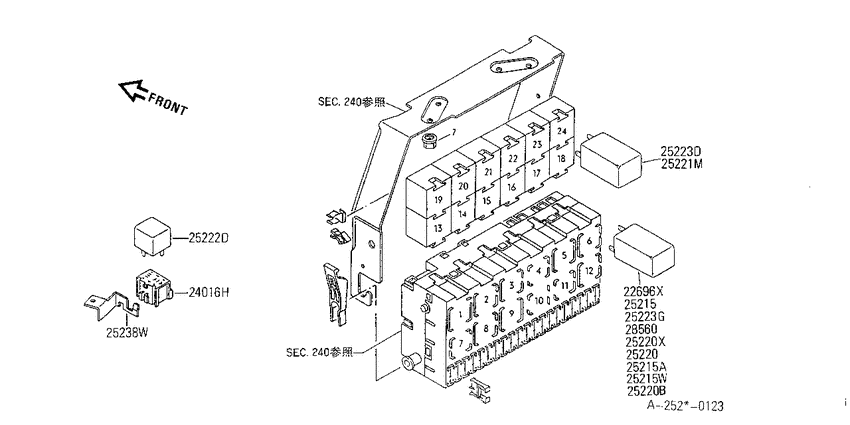

Relay (1990-05-01 ~ ; ALL) 19

#	OEM	Part name
22696	25231-80V10	Relay Assy-Fuel Pump
24016	24340-85V20	Connector Assy
24016	24340-85V21	Connector Assy
24016	24340-85V22	Connector Assy
24016	24340-85V23	Connector Assy
24016	24342-80V00	Connector Assy
25215	25630-80V00	Relay Assy-Fog Lamp
25215	27690-80V00	Relay Assy-Aircon
25215	25230-85V20	Relay-Passive Belt
25220	25230-80V15	Relay
25220	25230-85V10	Relay Assy-Starter
25220	25230-85V00	Relay Assy-Water Temperature
25221	27690-80V05	Relay-Fan Motor
25222	27690-85V15	Relay-Aircon
25222	27690-85V25	Relay-Aircon
25223	27690-85V01	Relay-Fan Motor
25223	25230-80V00	Relay-Wiper
25238	27755-80V00	Bracket-Relay
28560	28560-85V00	Relay Assy-Flasher

OEM	Part name	Category
24340-85V20	Connector Assy	Relay (1990-05-01 ~ ; ALL)
24340-85V21	Connector Assy	Relay (1990-05-01 ~ ; ALL)
24340-85V22	Connector Assy	Relay (1990-05-01 ~ ; ALL)
24340-85V23	Connector Assy	Relay (1990-05-01 ~ ; ALL)
24342-80V00	Connector Assy	Relay (1990-05-01 ~ ; ALL)
25230-80V00	Relay-Wiper	Relay (1990-05-01 ~ ; ALL)
25230-80V15	Relay	Relay (1990-05-01 ~ ; ALL)
25230-85V00	Relay Assy-Water Temperature	Relay (1990-05-01 ~ ; ALL)
25230-85V10	Relay Assy-Starter	Relay (1990-05-01 ~ ; ALL)
25230-85V20	Relay-Passive Belt	Relay (1990-05-01 ~ ; ALL)
25231-80V10	Relay Assy-Fuel Pump	Relay (1990-05-01 ~ ; ALL)
25630-80V00	Relay Assy-Fog Lamp	Relay (1990-05-01 ~ ; ALL)
27690-80V00	Relay Assy-Aircon	Relay (1990-05-01 ~ ; ALL)
27690-80V05	Relay-Fan Motor	Relay (1990-05-01 ~ ; ALL)
27690-85V01	Relay-Fan Motor	Relay (1990-05-01 ~ ; ALL)
27690-85V15	Relay-Aircon	Relay (1990-05-01 ~ ; ALL)
27690-85V25	Relay-Aircon	Relay (1990-05-01 ~ ; ALL)
27755-80V00	Bracket-Relay	Relay (1990-05-01 ~ ; ALL)
28560-85V00	Relay Assy-Flasher	Relay (1990-05-01 ~ ; ALL)
