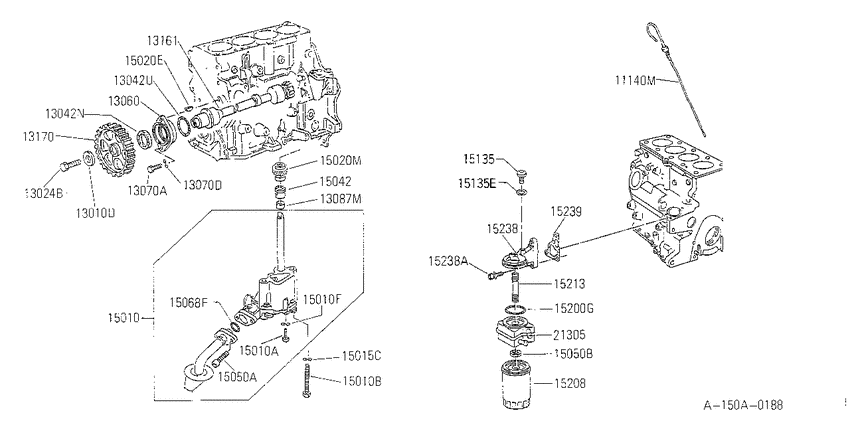

| 11140-80V00 |
Gauge-Oil Level |
Lubricating system (1990-05-01 ~ ; ALL) |
| 13024-80V01 |
Pulley-Jackshaft |
Lubricating system (1990-05-01 ~ ; ALL) |
| 13030-80V00 |
Washer-Lock |
Lubricating system (1990-05-01 ~ ; ALL) |
| 13060-V4901 |
Guide-Chain |
Lubricating system (1990-05-01 ~ ; ALL) |
| 13086-85V00 |
Sleeve-Tensioner |
Lubricating system (1990-05-01 ~ ; ALL) |
| 13161-85V00 |
Jackshaft Assy |
Lubricating system (1990-05-01 ~ ; ALL) |
| 13511-V4910 |
Seal-Oil, Crankshaft Front |
Lubricating system (1990-05-01 ~ ; ALL) |
| 15010-85V00 |
Pump Assy-Oil |
Lubricating system (1990-05-01 ~ ; ALL) |
| 15026-85V00 |
Gear Assy-Drive |
Lubricating system (1990-05-01 ~ ; ALL) |
| 15036-85V00 |
Bolt |
Lubricating system (1990-05-01 ~ ; ALL) |
| 15068-V4900 |
Sleeve-Tensioner |
Lubricating system (1990-05-01 ~ ; ALL) |
| 15208-V4000 |
Filter Assy-Oil |
Lubricating system (1990-05-01 ~ ; ALL) |
| 15213-V4960 |
Stud-Oil Filter |
Lubricating system (1990-05-01 ~ ; ALL) |
| 15216-V4960 |
Nut |
Lubricating system (1990-05-01 ~ ; ALL) |
| 15238-85V00 |
Bracket-Oil Filter |
Lubricating system (1990-05-01 ~ ; ALL) |
| 15239-V4001 |
Gasket-Oil Filter To Cylinder Block |
Lubricating system (1990-05-01 ~ ; ALL) |
| 21305-85V10 |
Oil Cooler |
Lubricating system (1990-05-01 ~ ; ALL) |
| 21305-V4960 |
Cooler Assy-Oil |
Lubricating system (1990-05-01 ~ ; ALL) |
| 21306-85V00 |
Nut-Union |
Lubricating system (1990-05-01 ~ ; ALL) |
| 21307-85V00 |
Nut-Union |
Lubricating system (1990-05-01 ~ ; ALL) |
| 22178-V4900 |
Bush-Oil Pump Drive Spindle |
Lubricating system (1990-05-01 ~ ; ALL) |
