Search › Model › 319A
319A

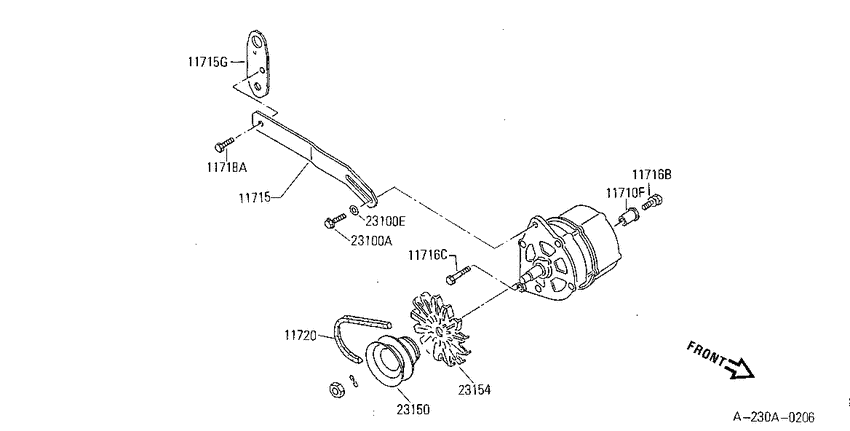

Alternator fitting (1990-05-01 ~ ; ALL) 10
| # | OEM | Part name |
|---|---|---|
| 11710 | 11914-80V00 | Bush-Alternator Bracket |
| 11710 | 49123-85V00 | Bush-Alternator Bracket |
| 11715 | 11715-85V05 | Bar-Adjusting, Alternator |
| 11715 | 10005-85V00 | Slinger-Engine |
| 11720 | 11720-85V00 | Belt-Fan |
| 11720 | 21517-80V00 | Belt-Fan & Alternator |
| 11720 | 21517-80V01 | Belt-Fan & Alternator |
| 23150 | 23150-85V01 | Pulley Assy |
| 23150 | 23153-85V00 | Nut Assy-Pulley |
| 23154 | 23154-85V00 | Fan-Alternator |
| OEM | Part name | Category |
|---|---|---|
| 10005-85V00 | Slinger-Engine | Alternator fitting (1990-05-01 ~ ; ALL) |
| 11715-85V05 | Bar-Adjusting, Alternator | Alternator fitting (1990-05-01 ~ ; ALL) |
| 11720-85V00 | Belt-Fan | Alternator fitting (1990-05-01 ~ ; ALL) |
| 11914-80V00 | Bush-Alternator Bracket | Alternator fitting (1990-05-01 ~ ; ALL) |
| 21517-80V00 | Belt-Fan & Alternator | Alternator fitting (1990-05-01 ~ ; ALL) |
| 21517-80V01 | Belt-Fan & Alternator | Alternator fitting (1990-05-01 ~ ; ALL) |
| 23150-85V01 | Pulley Assy | Alternator fitting (1990-05-01 ~ ; ALL) |
| 23153-85V00 | Nut Assy-Pulley | Alternator fitting (1990-05-01 ~ ; ALL) |
| 23154-85V00 | Fan-Alternator | Alternator fitting (1990-05-01 ~ ; ALL) |
| 49123-85V00 | Bush-Alternator Bracket | Alternator fitting (1990-05-01 ~ ; ALL) |
